347 Series | Double Shut Off Quick Release Couplings & Plugs

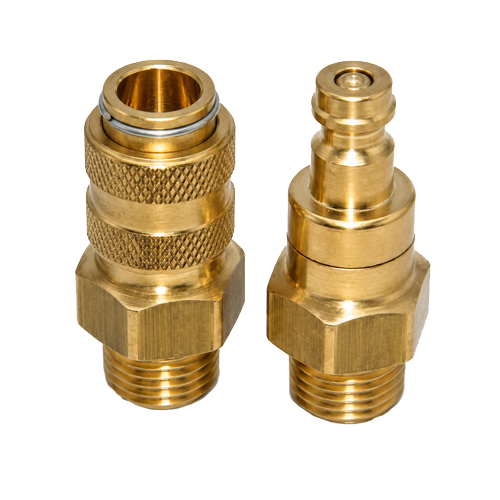

347 series coupling, internationally the most common profile for this nominal diameter, in double shut-off design. Above average flow performance for liquid gaseous media. Large range of materials and valve variants available.
Male Thread BSPP Coupling
| Part Number | Length | Diameter | Thread |
|---|---|---|---|
| 347CDMP14BNX | 38mm | 17mm | 1/4" |
| 347CDMP18BNX | 37mm | 17mm | 1/8" |
| 347CDMP38BNX | 38mm | 17mm | 3/8" |
| 347CDMM01BNX | 37mm | 17mm | M10 x 1 |
| 347CDMM21BNX | 39mm | 17mm | M12 x 1,5 |
| 347CDMM41BNX | 39mm | 17mm | M14 x 1,5 |
Female Thread BSPP Coupling
| Part Number | Length | Diameter | Thread |
|---|---|---|---|
| 347CDFP14BNX | 38mm | 17mm | 1/4" |
| 347CDFP18BNX | 37mm | 17mm | 1/8" |
| 347CDFP38BNX | 47mm | 17mm | 3/8" |
| 347CDFM01BNX | 38mm | 17mm | M10 x 1 |
| 347CDFM21BNX | 38mm | 17mm | M12 x 1,5 |
| 347CDFM41BNX | 38mm | 17mm | M14 x 1,5 |
Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 347CDHT04BNX | 47mm | 17mm | 4mm |
| 347CDHT05BNX | 46mm | 17mm | 5mm |
| 347CDHT06BNX | 46mm | 17mm | 6mm |
| 347CDHT08BNX | 46mm | 17mm | 8mm |
| 347CDHT09BNX | 46mm | 17mm | 9mm |
Bulkhead To Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 347CDBH04BNX | 60mm | 17mm | 4mm |
| 347CDBH06BNX | 60mm | 17mm | 6mm |
| 347CDBH09BNX | 60mm | 17mm | 9mm |

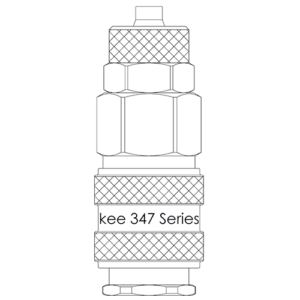

Tube Connection Coupling
| Part Number | Length | Diameter | Tube Size |
|---|---|---|---|
| 347CDTC06BNX | 42mm | 17mm | x 6mm |
| 347CDTC08BNX | 42mm | 17mm | x 8mm |
Tube Connection Coupling With Spring
| Part Number | Length | Diameter | Tube Size |
|---|---|---|---|
| 347CDTS06BNX | 120mm | 17mm | x 6mm |
| 347CDTS08BNX | 120mm | 17mm | x 8mm |

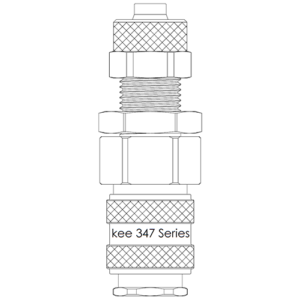

Bulkhead Tube Connection Coupling
| Part Number | Length | Diameter | Tube Size |
|---|---|---|---|
| 347CDBT06BNX | 42mm | 17mm | x 6mm |
| 347CDBT08BNX | 42mm | 17mm | x 8mm |
Male Thread BSPP Plug
| Part Number | Length | Thread |
|---|---|---|
| 347PDMP14BNX | 42mm | 1/4" |
| 347PDMP18BNX | 40mm | 1/8" |
| 347PDMP38BNX | 42mm | 3/8" |
| 347PDMM21BNX | 44mm | M12 x 1,5 |
| 347PDMM41BNX | 44mm | M14 x 1,5 |
Female Thread BSPP Plug
| Part Number | Length | Thread |
|---|---|---|
| 347PDFP14BNX | 42mm | 1/4" |
| 347PDFP18BNX | 42mm | 1/8" |
| 347PDFP38BNX | 43mm | 3/8" |
| 347PDFM21BNX | 42mm | M12 x 1,5 |
| 347PDFM41BNX | 42mm | M14 x 1,5 |
Hosetail Plug
| Part Number | Length | Hosetail |
|---|---|---|
| 347PDHT04BNX | 50mm | 4mm |
| 347PDHT06BNX | 46mm | 6mm |
| 347PDHT08BNX | 46mm | 8mm |
| 347PDHT09BNX | 46mm | 9mm |
Bulkhead To Hosetail Plug
| Part Number | Length | Hosetail |
|---|---|---|
| 347PDBH04BNX | 64mm | 4mm |
| 347PDBH06BNX | 64mm | 6mm |
| 347PDBH09BNX | 64mm | 9mm |
Tube Connection Plug
| Part Number | Length | Tube Size |
|---|---|---|
| 347PDTC06BNX | 47mm | x 6mm |
| 347PDTC08BNX | 47mm | x 8mm |
Tube Connection Plug With Spring
| Part Number | Length | Tube Size |
|---|---|---|
| 347PDTS06BNX | 135mm | x 6mm |
| 347PDTS08BNX | 135mm | x 8mm |
Bulkhead Tube Connection Plug
| Part Number | Length | Tube Size |
|---|---|---|
| 347PDBT06BNX | 58mm | x 6mm |
| 347PDBT08BNX | 58mm | x 8mm |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58)
Valve Body: Brass (MS 58)
Sleeve: Brass (MS 58)
Spring: Stainless Steel 301
Locking Balls: Stainless Steel 301
Plug Specifications
Plug: Brass (MS 58)
Valve: Brass (MS 58)
Body: Brass (MS 58)
Spring: Stainless Steel 301
Seal: NBR
Working Limits
Working Temperature
-20°C to +100°C (NBR)
-40°C to +130°C (EPDM)
-15°C to +200°C (Viton)
Depending on Medium
Working Pressure
35 Bar
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
- Parker-Rectus 21 KB
