- Single handed operation.
- Termination compatibility
- Valve Options.
- Seal Material.
Male Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 050CVMP18BNN | 1/8" | 37mm | 17mm |
| 050CVMP14BNN | 1/4" | 38mm | 17mm |
| 050CVMP38BNN | 3/8" | 38mm | 17mm |
| 050CVAM01BNN | M10 x 1 | 37mm | 17mm |
| 050CVAM21BNN | M12 x 1.5 | 39mm | 17mm |
| 050CVAM41BNN | M14 x 1.5 | 39mm | 17mm |
Female Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 050CVFP18BNN | 1/8" | 37mm | 17mm |
| 050CVFP14BNN | 1/4" | 38mm | 17mm |
| 050CVFP38BNN | 3/8" | 47mm | 17mm |
| 050CVFM01BNN | M10 x 1 | 38mm | 17mm |
| 050CVFM21BNN | M12 x 1.5 | 38mm | 17mm |
| 050CVFM41BNN | M14 x 1.5 | 38mm | 17mm |

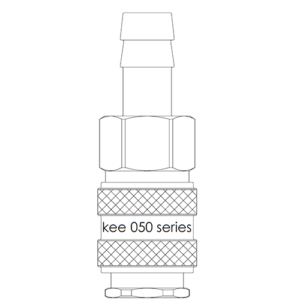

Hosetail Coupling
| Part Number | Hosetail | Length | Diameter |
|---|---|---|---|
| 050CVHT04BNN | 4mm | 47mm | 17mm |
| 050CVHT05BNN | 5mm | 46mm | 17mm |
| 050CVHT06BNN | 6mm | 46mm | 17mm |
| 050CVHT08BNN | 8mm | 46mm | 17mm |
| 050CVHT09BNN | 9mm | 46mm | 17mm |
| 050CVHT10BNN | 10mm | 46mm | 16mm |
Bulkhead To Hosetail Coupling
| Part Number | Hosetail | Length | Diameter |
|---|---|---|---|
| 050CVBH04BNN | 4mm | 60mm | 16mm |
| 050CVBH05BNN | 5mm | 60mm | 16mm |
| 050CVBH06BNN | 6mm | 60mm | 16mm |
| 050CVBH08BNN | 8mm | 60mm | 16mm |
| 050CVBH10BNN | 10mm | 60mm | 16mm |

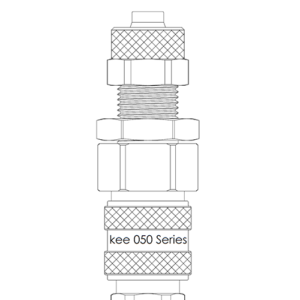

Bulkhead To Tube Coupling
| Part Number | Tube Size | Length | Diameter |
|---|---|---|---|
| 050CVBT06BNN | 4 x 6mm | 53mm | 16mm |
| 050CVBT08BNN | 6 x 8mm | 53mm | 16mm |

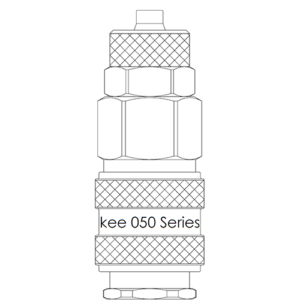

Tube Connection Coupling
| Part Number | Tube Size | Length | Diameter |
|---|---|---|---|
| 050CVTC06BNN | 4 x 6mm | 42mm | 17mm |
| 050CVTC08BNN | 6 x 8mm | 42mm | 17mm |

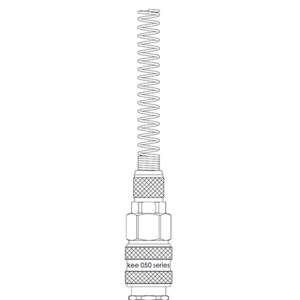

Tube Connection Spring Guarded Coupling
| Part Number | Termination | Length | Diameter |
|---|---|---|---|
| 050CVTS06BNN | 4 x 6mm | 125mm | 16mm |
| 050CVTS08BNN | 6 x 8mm | 120130mm | 16mm |
Male Thread BSPP Plug
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 050PNMP18BXN | 1/8" | 25mm | 8.1mm |
| 050PNMP14BXN | 1/4" | 28mm | 8.1mm |
| 050PNMP38BXN | 3/8" | 28mm | 8mm |
| 050PNAM01BXN | M10 x 1 | 26mm | 8mm |
| 050PNAM21BXN | M12 x 1.5 | 29mm | 8mm |
| 050PNAM41BXN | M14 x 1.5 | 29mm | 8.1mm |
Female Thread BSPP Plug
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 050PNFP18BXN | 1/8" | 25mm | 8.1mm |
| 050PNFP14BXN | 1/4" | 26mm | 8.1mm |
| 050PNFP38BXN | 3/8" | 27mm | 8mm |
| 050PNFM01BXN | M10 x 1 | 23mm | 8mm |
| 050PNFM21BXN | M12 x 1.5 | 25mm | 8mm |
| 050PNFM41BXN | M14 x 1.5 | 25mm | 8mm |
Hosetail Plug
| Part Number | Hosetail | Length | Diameter |
|---|---|---|---|
| 050PNHT04BXN | 4mm | 32mm | 8mm |
| 050PNHT05BXN | 5mm | 32mm | 8mm |
| 050PNHT06BXN | 6mm | 32mm | 8.1mm |
| 050PNHT08BXN | 8mm | 32mm | 8.1mm |
| 050PNHT09BXN | 9mm | 38mm | 8.1mm |
| 050PNHT10BXN | 10mm | 32mm | 8.1mm |
Bulkhead To Hosetail Plug
| Part Number | Hosetail | Length | Diameter |
|---|---|---|---|
| 050PNBH04BXN | 4mm | 50mm | 8mm |
| 050PNBH05BXN | 5mm | 50mm | 8.1mm |
| 050PNBH06BXN | 6mm | 50mm | 8.1mm |
| 050PNBH08BXN | 8mm | 50mm | 8.1mm |
| 050PNBH09BXN | 9mm | 50mm | 8.1mm |
| 050PNBH10BXN | 10mm | 50mm | 8.1mm |
Bulkhead To Tube Plug
| Part Number | Tube Size | Length | Diameter |
|---|---|---|---|
| 050PNBT06BXN | 4 x 6mm | 44mm | 8mm |
| 050PNBT08BXN | 6 x 8mm | 44mm | 8.1mm |
Tube Connection Plug
| Part Number | Tube Size | Length | Diameter |
|---|---|---|---|
| 050PNTC05BXN | 3 x 5mm | 32mm | 8mm |
| 050PNTC06BXN | 4 x 6mm | 32mm | 8mm |
| 050PNTC08BXN | 6 x 8mm | 32mm | 8.1mm |
Tube Connection Spring Guarded Plug
| Part Number | Tube Size | Length | Diameter |
|---|---|---|---|
| 050PNTS06BXN | 4 x 6mm | 115mm | 8mm |
| 050PNTS08BXN | 6 x 8mm | 120mm | 8mm |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58) Nickel Plated
Valve Body: Brass (MS 58) Nickel Plated
Sleeve: Brass (MS 58) Nickel Plated
Spring: Stainless Steel 301
Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301

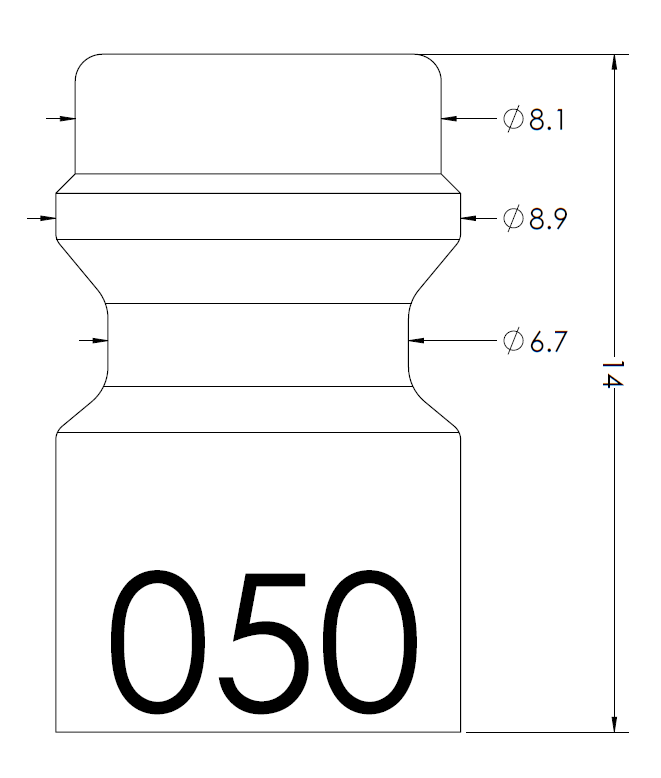

Plug Specifications
Plug Body: Brass (MS 58) Nickel Plated
Working Limits
Working Temperature
-20°C to +100°C (NBR);
-40°C to +130°C (EPDM);
-15°C to +200°C (Viton) - Depending on Medium
Working Pressure
35 Bar
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
- Parker-Rectus 21
- Maxsafe C21
- Camozzi 5000
