- Single handed operation.
- Small dimensions.

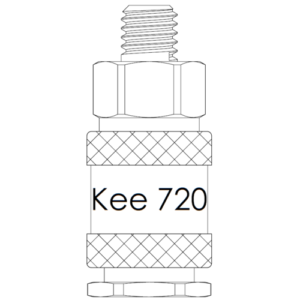

Male Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 720CVMM50BNN | M5 | 26mm | 10mm |
| 720CVMP18BNN | 1/8" | 28mm | 10mm |
Female Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 720CVFM50BNN | M5 | 26mm | 10mm |
| 720CVFP18BNN | 1/8" | 28mm | 10mm |

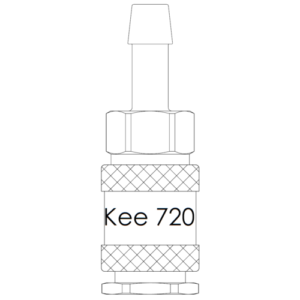

Hose Tail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 720CVHT03BNN | 28mm | 10mm | 3mm |
| 720CVHT04BNN | 35mm | 10mm | 4mm |
| 720CVHT05BNN | 35mm | 10mm | 5mm |

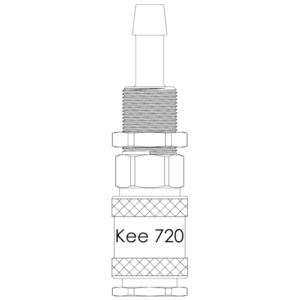

Bulkhead To Hose Tail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 720CVBH03BNN | 51mm | 10mm | 3mm |
| 720CVBH04BNN | 51mm | 10mm | 4mm |
| 720CVBH05BNN | 51mm | 10mm | 5mm |

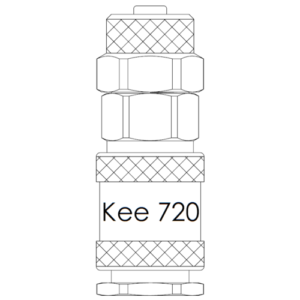

Tube Connection Coupling
| Part Number | Length | Diameter | Tube Size |
|---|---|---|---|
| 720CVTC04BNN | 33mm | 10mm | 3 x 4mm |
| 720CVTC05BNN | 33mm | 10mm | 3 x 5mm |
| 720CVTC06BNN | 33mm | 10mm | 4 x 6mm |
Bulkhead To Tube Coupling
| Part Number | Length | Diameter | Tube Size |
|---|---|---|---|
| 720CVBT04BNN | 33mm | 10mm | 3 x 4mm |
| 720CVBT05BNN | 45mm | 10mm | 3 x 5mm |
| 720CVBT06BNN | 45mm | 10mm | 4 x 6mm |
Male Thread BSPP Plug
| Part Number | Thread | Length |
|---|---|---|
| 720PNMM50BXN | M5 | 18mm |
| 720PNMP18BXN | 1/8" | 20mm |

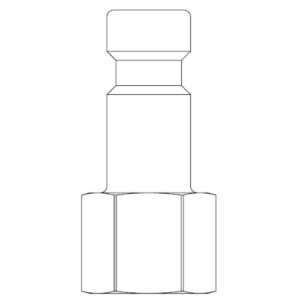

Female Thread BSPP Plug
| Part Number | Thread | Length |
|---|---|---|
| 720PNFM50BXN | M5 | 17mm |
| 720PNFP18BXN | 1/8" | 19mm |
Hose Tail Plug
| Part Number | Length | Hosetail |
|---|---|---|
| 720PNHT03BXN | 24mm | 3mm |
| 720PNHT04BXN | 24mm | 4mm |
| 720PNHT05BXN | 24mm | 5mm |

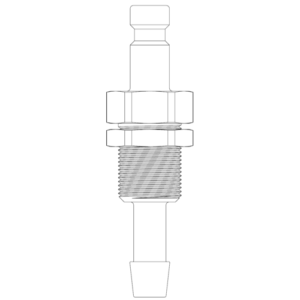

Bulkhead To Hose Tail Plug
| Part Number | Length | Hosetail |
|---|---|---|
| 720PNBH03BXN | 45mm | 3mm |
| 720PNBH04BXN | 45mm | 4mm |
| 720PNBH05BXN | 45mm | 5mm |
Tube Connection Plug
| Part Number | Length | Tube Size |
|---|---|---|
| 720PNTC04BXN | 25mm | 3 x 4mm |
| 720PNTC05BXN | 25mm | 3 x 5mm |
| 720PNTC06BXN | 25mm | 4 x 6mm |

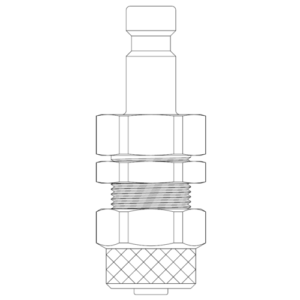

Bulkhead To Tube Plug
| Part Number | Length | Tube Size |
|---|---|---|
| 720PNBT04BXN | 38mm | 3 x 4mm |
| 720PNBT05BXN | 38mm | 3 x 5mm |
| 720PNBT06BXN | 38mm | 4 x 6mm |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58)
Valve Body: Brass (MS 58)
Sleeve: Brass (MS 58)
Spring: Stainless Steel 301
Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
coated) — Seals: FKM (PTFE
Plug Specifications
Plug Body: Brass (MS 58)
Working Limits
Working Temperature
-25°C to +200°C (Viton)
Working Pressure
15 Bar (safety factor 4:1)
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
- Walther 06 0003
- Parker-Rectus 20
- Maxsafe C20
