850 Series | Straight Through Quick Release Couplings & Plugs
The 850 Series is a 15mm straight through quick release coupling with high flow capacity and no valve. All versions interchangeable. Available with 3/4" BSPP female thread and 19mm hose tail couplings, with BSPT/BSPP plug and hose tail plug options.

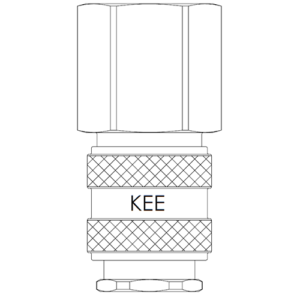

Female Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 850CNFP34BNC | 3/4" | 31mm | 35mm |
Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 850CNHT19BNC | 44mm | 35mm | 19mm |
Male Thread BSPT Plug
| Part Number | Thread | Length |
|---|---|---|
| 850PNMP34BNC | 3/4" | 35mm |
Female Thread BSPP Plug
| Part Number | Thread | Length |
|---|---|---|
| 850PNFP34BNC | 3/4" | 35mm |
Hosetail Plug
| Part Number | Length | Hosetail |
|---|---|---|
| 850PNHT13BNC | 43mm | 13mm |
| 850PNHT19BNC | 43mm | 19mm |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58) Plated
Valve Body: Brass (MS 58) Plated
Sleeve: Brass (MS 58) Plated
Spring: Stainless Steel 301
Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
Seals: NBR

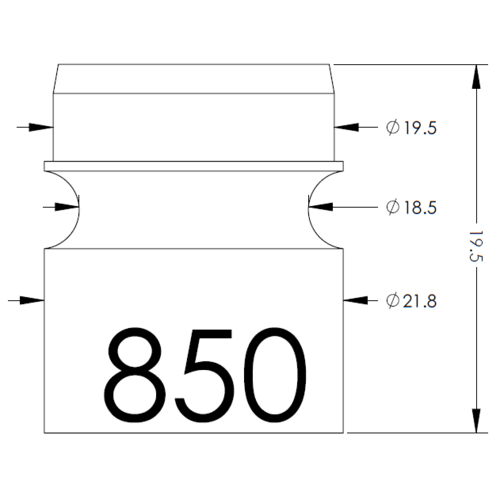

Plug Specifications
Plug Body: Brass (MS 58) Plated
Working Limits
Working Temperature
-20°C to +100°C (NBR) | -40°C to +130°C (EPDM) | -15°C to +200°C (Viton)
Working Pressure
15 Bar (safety factor 4:1)
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
No interchangeables listed.
