- Single handed operation.
- Small dimensions.
Male Thread Metric Coupling
| Part Number | Length | Diameter | Thread | sort_group |
|---|---|---|---|---|
| 720CNMM50BVX | 26mm | 10mm | M5 x 0.5 | 40 |
| 720CNMM80BVX | 28mm | 10mm | M8 x 0.75 | 40 |

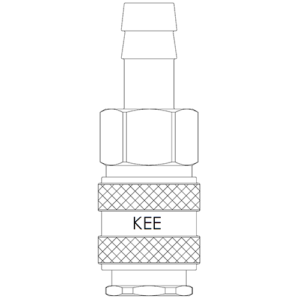

Hosetail Coupling
| Part Number | Length | Diameter | Hosetail | sort_group |
|---|---|---|---|---|
| 720CNHT05BVX | 35mm | 10mm | 5mm | 1 |

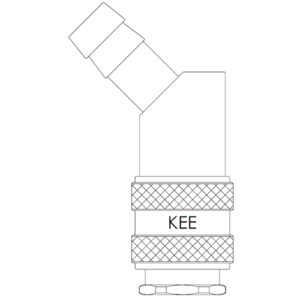

45 deg Hosetail Coupling
| Part Number | Length | Diameter | Hosetail | sort_group |
|---|---|---|---|---|
| 720CNHF05BVX | 41mm | 10mm | 5mm | 10 |

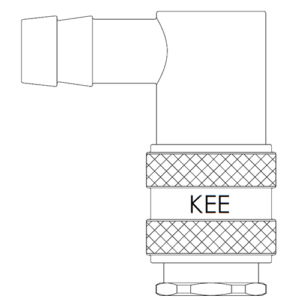

90 deg Hosetail Coupling
| Part Number | Length | Diameter | Hosetail | sort_group |
|---|---|---|---|---|
| 720CNHN05BVX | 41mm | 10mm | 5mm | 20 |
Male Thread Metric Plug
| Part Number | Length | Thread | sort_group |
|---|---|---|---|
| 720PNMM50BXX | 18mm | M5 x 0.5 | 50 |
| 720PNMM80BXX | 20mm | M8 x 0.75 | 50 |
Hosetail Plug
| Part Number | Length | Hosetail | sort_group |
|---|---|---|---|
| 720PNHT05BXX | 25mm | 5mm | 30 |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58)
Valve Body: Brass (MS 58)
Sleeve: Brass (MS 58)
Spring: Stainless Steel 301
Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
coated) — Seals: FKM (PTFE
Plug Specifications
Plug Body: Brass (MS 58)
Working Limits
Working Temperature
-25°C to +200°C (Viton)
Working Pressure
15 Bar (safety factor 4:1)
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
No interchangeables listed.
