- Single handed operation
- High flow, low pressure drops

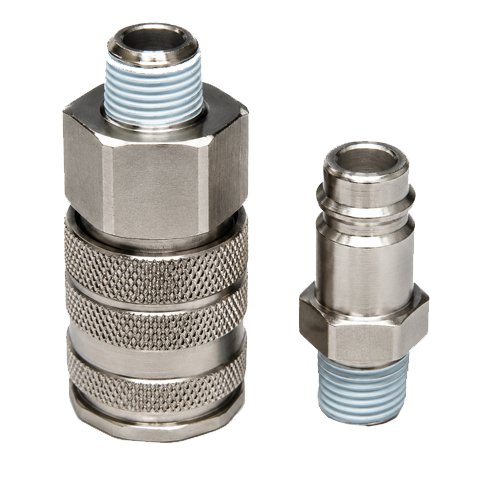

Male Thread BSPT Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 100CVMT14BNN | 1/4" | 63mm | 27mm |
| 100CVMT34BNN | 3/4" | 65mm | 27mm |
| 100CVMT38BNN | 3/8" | 63mm | 27mm |
| 100CVMT12BNN | 1/2" | 65mm | 27mm |
Female Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 100CVFP14BNN | 1/4" | 56mm | 27mm |
| 100CVFP34BNN | 3/4" | 60mm | 27mm |
| 100CVFP38BNN | 3/8" | 56mm | 27mm |
| 100CVFP12BNN | 1/2" | 56mm | 27mm |

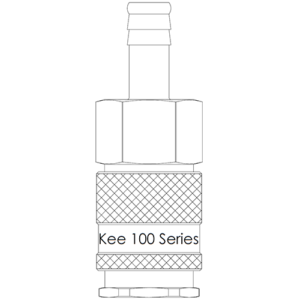

Hosetail Coupling
| Part Number | Hosetail | Length | Diameter |
|---|---|---|---|
| 100CVHT09BNN | 9mm | 76mm | 27mm |
| 100CVHT10BNN | 10mm | 76mm | 27mm |
| 100CVHT13BNN | 13mm | 76mm | 27mm |
| 100CVHT16BNN | 16mm | 76mm | 27mm |
| 100CVHT19BNN | 19mm | 76mm | 27mm |
Male Thread BSPT Plug
| Part Number | Thread | Length |
|---|---|---|
| 100PNMT14SXN | 1/4" | 40mm |
| 100PNMT34SXN | 3/4" | 48mm |
| 100PNMT38SXN | 3/8" | 40mm |
| 100PNMT12SXN | 1/2" | 45mm |
Female Thread BSPP Plug
| Part Number | Thread | Length |
|---|---|---|
| 100PNFP14SXN | 1/4" | 34mm |
| 100PNFP34SXN | 3/4" | 42mm |
| 100PNFP38SXN | 3/8" | 36mm |
| 100PNFP12SXN | 1/2" | 37mm |
Hosetail Plug
| Part Number | Hosetail | Length |
|---|---|---|
| 100PNHT09SXN | 9mm | 48mm |
| 100PNHT10SXN | 10mm | 48mm |
| 100PNHT13SXN | 13mm | 48mm |
| 100PNHT16SXN | 16mm | 48mm |
| 100PNHT19SXN | 19mm | 48mm |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58) Nickel Plated
Valve Body: Brass (MS 58) Nickel Plated
Sleeve: Steel Hardened Nickel Plated
Spring and Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
Seals: NBR
Plug Specifications
Plug Body: Steel Hardened and Nickel Plated
Sleeve: Brass (MS 58) Nickel Plated
Locking Balls: Stainless Steel 301
Working Limits
Working Temperature
-20°C to +100°C (NBR);
-40°C to +130°C (EPDM);
-15°C to +200°C (Viton) - Depending on Medium
Working Pressure
35 Bar
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
- CEJN 410
- Parker-Rectus 27
