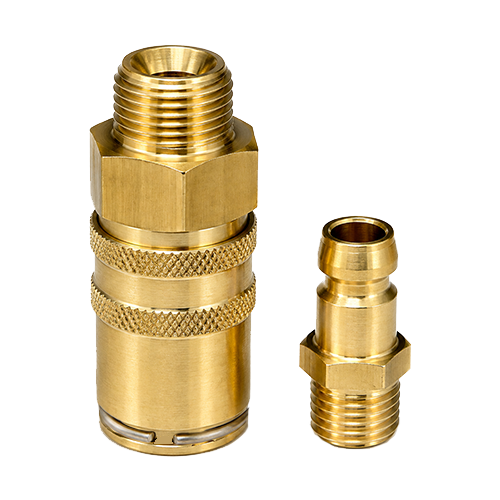

![Two brass quick-connect fittings (male and female) for hose connections in a fluid system.]},{](https://keeconnections.co.uk/wp-content/uploads/2026/08/Kee-390-Series-Main.png "Kee-390-Series-Main")
- Suitable for Hot/Cold water & Oil
- Single handed operation Connection & Disconnection

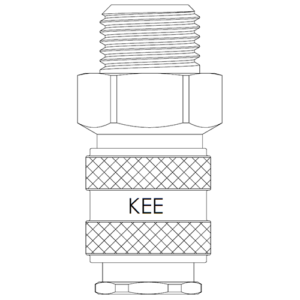

Male Thread BSPP Coupling
| Part Number | Length | Diameter | Thread |
|---|---|---|---|
| 390CDMP12BVX | 53mm | 22mm | 1/2" |
| 390CDMP14BVX | 52mm | 22mm | 1/4" |
| 390CDMP38BVX | 52mm | 22mm | 3/8" |
| 390CDMM61BVX | 52mm | 22mm | M16 x 1,5 |

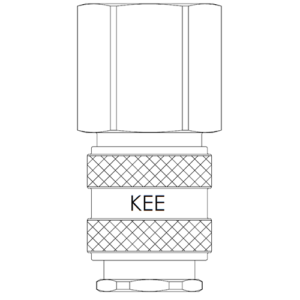

Female Thread BSPP Coupling
| Part Number | Length | Diameter | Thread |
|---|---|---|---|
| 390CDFP12BVX | 49mm | 22mm | 1/2" |
| 390CDFP14BVX | 45mm | 22mm | 1/4" |
| 390CDFP38BVX | 46mm | 22mm | 3/8" |
Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 390CDHT13BVX | 62mm | 22mm | 13mm |
| 390CDHT09BVX | 62mm | 22mm | 9mm |

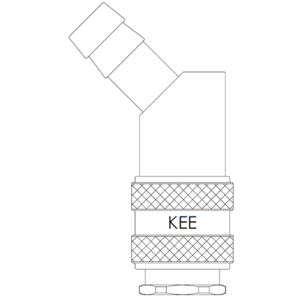

45 deg Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 390CDHF13BVX | 51mm | 22mm | 13mm |
| 390CDHF09BVX | 51mm | 22mm | 9mm |

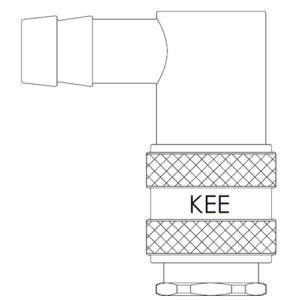

90 deg Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 390CDHN13BVX | 51mm | 22mm | 13mm |
| 390CDHN09BVX | 51mm | 22mm | 9mm |
Male Thread BSPP Plug
| Part Number | Length | Thread |
|---|---|---|
| 390PDMP12BVX | 31mm | 1/2" |
| 390PDMP14BVX | 26mm | 1/4" |
| 390PDMP38BVX | 26mm | 3/8" |
| 390PDMM41BVX | 26mm | M14 x 1,5 |
| 390PDMM61BVX | 26mm | M16 x 1,5 |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58)
Valve Body: Brass (MS 58)
Sleeve: Brass (MS 58)
Spring: Stainless Steel 301
Locking Balls: Stainless Steel 301
Plug Specifications
Plug Body: Brass (MS 58)
Valve: Brass (MS 58)
Spring: Stainless Steel 301
Seal: Viton
Working Limits
Working Temperature
-20°C to +100°C (NBR)
-40°C to +130°C (EPDM)
-15°C to +200°C (Viton)
Depending on Medium
Working Pressure
15 Bar
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
No interchangeables listed.
