- Suitable for Hot/Cold water & Oil
- Single handed operation Connection & Disconnection

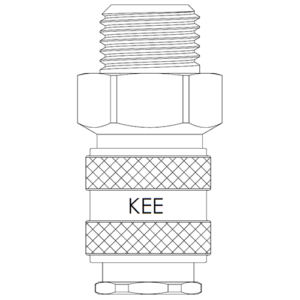

Male Thread BSPP Coupling
| Part Number | Length | Diameter | Thread |
|---|---|---|---|
| 388CDMP12BVX | 53mm | 22mm | 1/2" |
| 388CDMP14BVX | 52mm | 22mm | 1/4" |
| 388CDMP38BVX | 52mm | 22mm | 3/8" |
| 388CDMM61BVX | 52mm | 22mm | M16 x 1,5 |
Female Thread BSPP Coupling
| Part Number | Length | Diameter | Thread |
|---|---|---|---|
| 388CDFP12BVX | 49mm | 22mm | 1/2" |
| 388CDFP14BVX | 45mm | 22mm | 1/4" |
| 388CDFP38BVX | 46mm | 22mm | 3/8" |

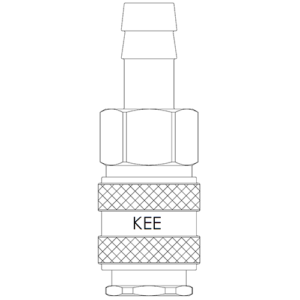

Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 388CDHT13BVX | 62mm | 22mm | 13mm |
| 388CDHT09BVX | 62mm | 22mm | 9mm |

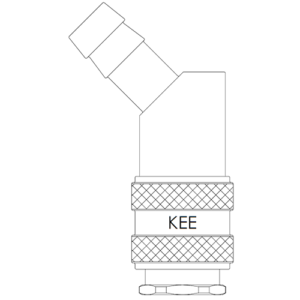

45 deg Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 388CDHF13BVX | 51mm | 22mm | 13mm |
| 388CDHF09BVX | 51mm | 22mm | 9mm |

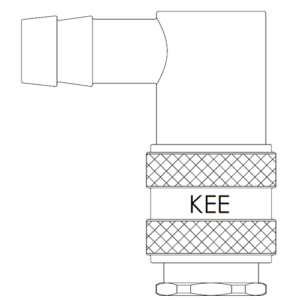

90 deg Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 388CDHN13BVX | 51mm | 22mm | 13mm |
| 388CDHN09BVX | 51mm | 22mm | 9mm |
Male Thread BSPP Plug
| Part Number | Length | Thread |
|---|---|---|
| 388PDMP14BVX | 26mm | 1/4" |
| 388PDMP38BVX | 26mm | 3/8" |
| 388PDMM41BVX | 26mm | M14 x 1,5 |
| 388PDMM61BVX | 26mm | M16 x 1,5 |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58)
Valve Body: Brass (MS 58)
Sleeve: Brass (MS 58)
Spring: Stainless Steel 301
Locking Balls: Stainless Steel 301

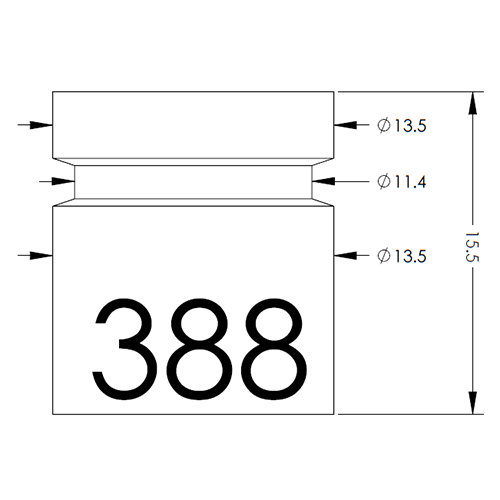

Plug Specifications
Plug Body: Brass (MS 58)
Valve: Brass (MS 58)
Spring: Stainless Steel 301
Seal: Viton
Working Limits
Working Temperature
-20°C to +100°C (NBR)
-40°C to +130°C (EPDM)
-15°C to +200°C (Viton)
Depending on Medium
Working Pressure
15 Bar
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
No interchangeables listed.
