- Single handed operation.
- High flow, low pressure drops

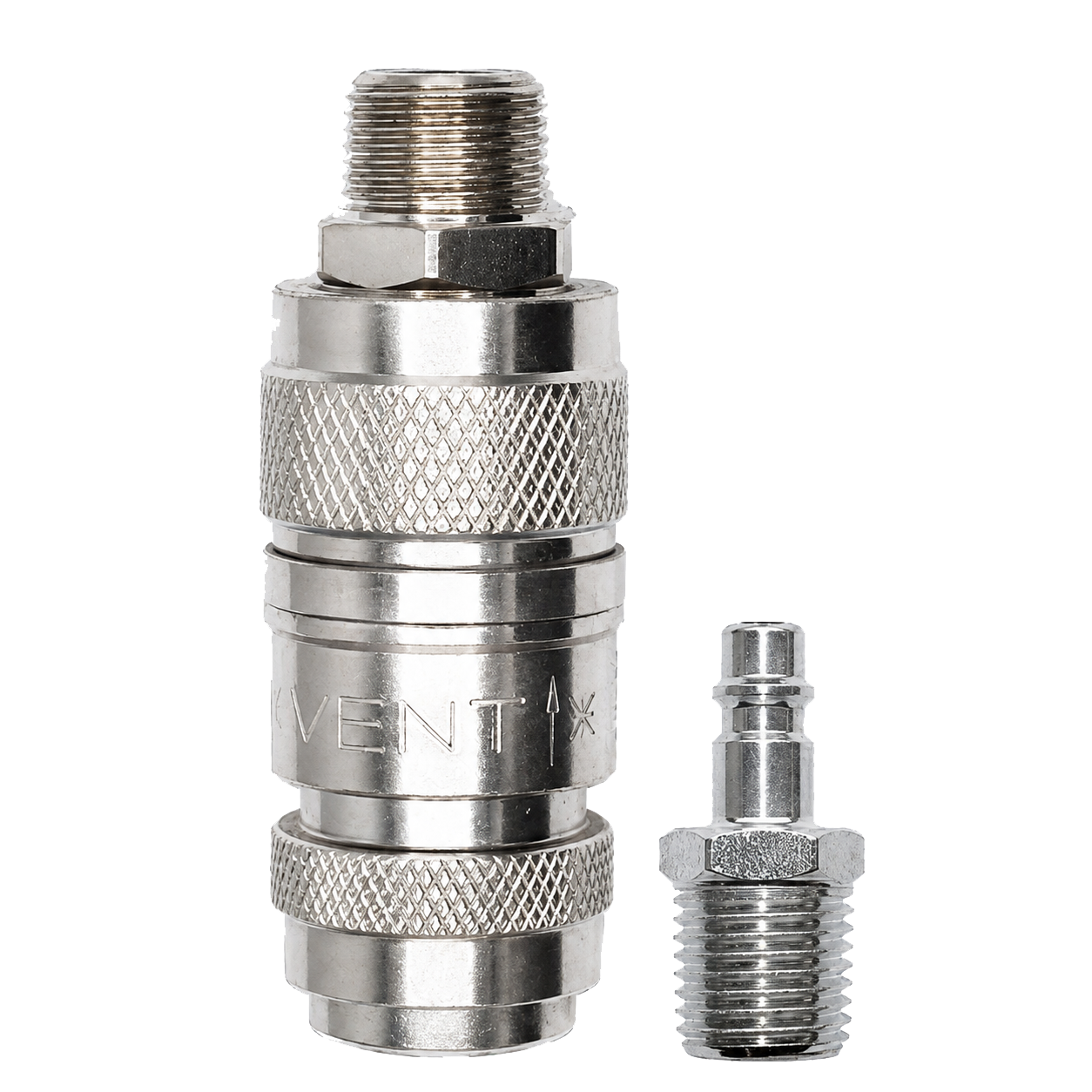

075VS Series | Safety Lock Breathing Air Venting Coupling & Plugs
The 075VS Series is a VentSafe quick release coupling specially suited to compressed air applications. Its compact dimensions and single-handed operation make it suitable for a wide range of industrial pneumatic applications, while retaining compatibility with the standard 075 Series plug profile.
The VentSafe mechanism is incorporated into the coupling, allowing downstream pressure to vent before the plug is fully disconnected. This controlled release helps reduce hose whip and the risks associated with disconnecting a pressurised compressed air line, while allowing the same compatible plugs to be used with either standard 075 or 075VS VentSafe couplings.

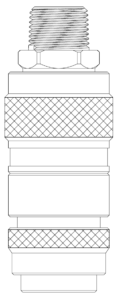

Male Thread BSPT Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 075VSMT14BNN | 1/4" | 60mm | 23mm |
| 075VSMT38BNN | 3/8" | 60mm | 23mm |
| 075VSMT21BNN | 1/2" | 60mm | 23mm |
Female Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 075VSFP14BNN | 1/4" | 55mm | 23mm |
| 075VSFP38BNN | 3/8" | 55mm | 23mm |
| 075VSFP21BNN | 1/2" | 57mm | 23mm |
Male Thread BSPT Plug
| Part Number | Thread | Length |
|---|---|---|
| 075PNMT14SXN | 1/4" | 37mm |
| 075PNMT38SXN | 3/8" | 37mm |
| 075PNMT12SXN | 1/2" | 43mm |
Female Thread BSPP Plug
| Part Number | Thread | Length |
|---|---|---|
| 075PNFP14SXN | 1/4" | 37mm |
| 075PNFP38SXN | 3/8" | 37mm |
| 075PNFP12SXN | 1/2" | 43mm |
Hosetail Plug
| Part Number | Length | Hosetail |
|---|---|---|
| 075PNHT06SXN | 46mm | 6mm |
| 075PNHT08SXN | 46mm | 8mm |
| 075PNHT10SXN | 46mm | 10mm |
| 075PNHT13SXN | 48mm | 13mm |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58) Nickel Plated
Valve Body: Brass (MS 58) Nickel Plated
Sleeve: Steel Nickel Plated
Spring and Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
Seals: FKM (PTFE-coated)
Plug Specifications
Plug Body: Stainless Steel 301
Working Limits
Working Temperature
-20°C to +100°C (NBR);
-40°C to +130°C (EPDM);
-15°C to +200°C (Viton) - Depending on Medium
Working Pressure
35 Bar
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
- CEJN 320
- Parker-Rectus 25
- Maxsafe C25
