- Single handed operation
- UK Standard Profile
- Flange in front of coupling - prevents accidental disconnection

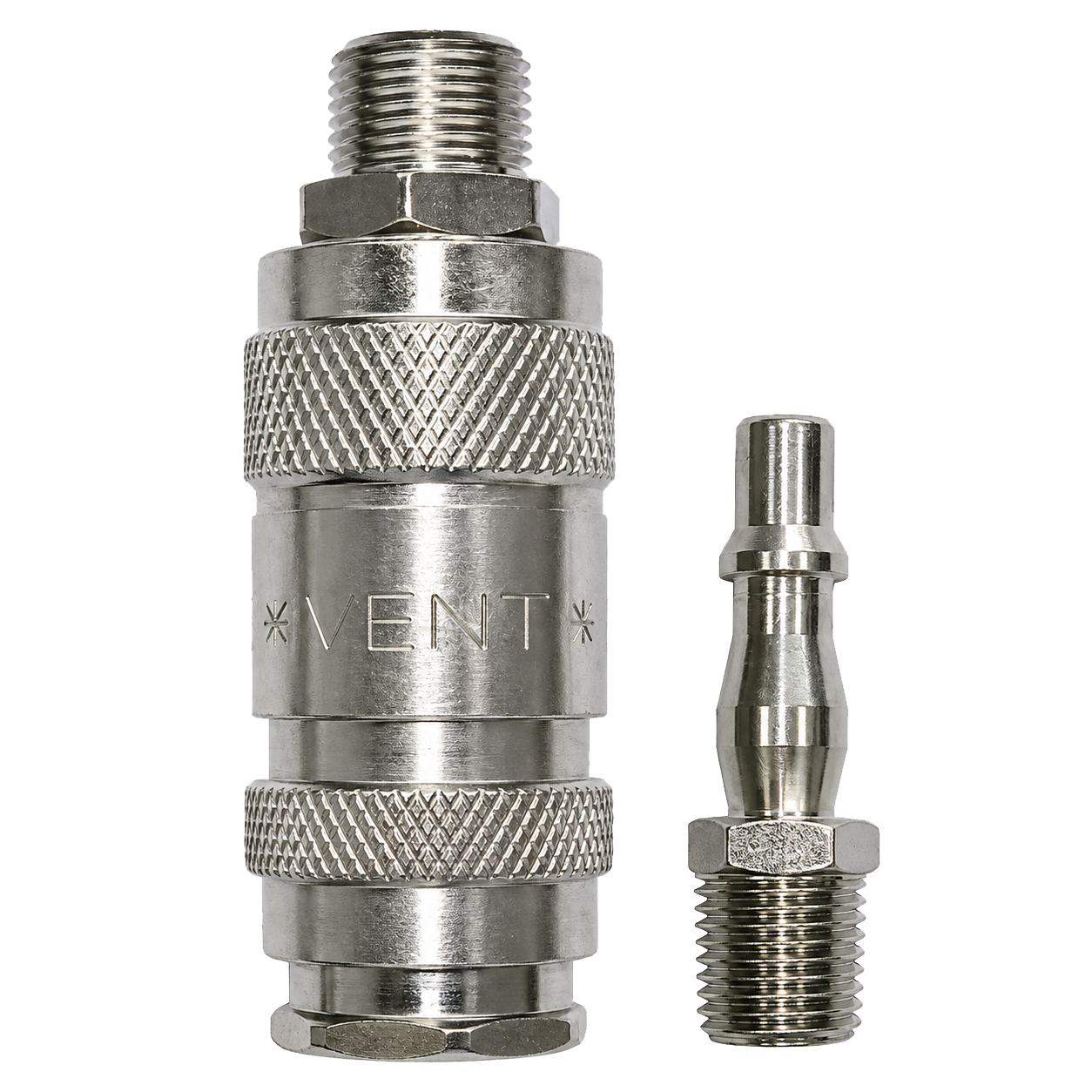

057VS Series | Safety Lock Breathing Air Venting Coupling & Plugs
The 057VS Series is a 5.5mm nominal bore VentSafe quick release coupling based on the UK standard plug profile widely used throughout the compressed air market. It provides above-average flow for its nominal bore while retaining compatibility with the standard 057 Series plug profile.
The VentSafe mechanism is incorporated into the coupling, allowing downstream pressure to vent before the plug is fully disconnected. This controlled release helps reduce hose whip and the risks associated with disconnecting a pressurised compressed air line, while allowing the same compatible plugs to be used with either standard 057 or 057VS VentSafe couplings.
Male Thread BSPT Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 057VSMT14SNN | 1/4" | 63mm | 23mm |
| 057VSMT38SNN | 3/8" | 63mm | 23mm |
| 057VSMT12SNN | 1/2" | 63mm | 23mm |
Female Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 057VSFP14SNN | 1/4" | 63mm | 23mm |
| 057VSFP38SNN | 3/8" | 63mm | 23mm |
| 057VSFP12SNN | 1/2" | 63mm | 23mm |
Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 057VSHT06SNN | 74mm | 23mm | 6mm |
| 057VSHT12SNN | 74mm | 23mm | 12mm |
| 057VSHT08SNN | 74mm | 23mm | 8mm |
| 057VSHT10SNN | 74mm | 23mm | 10mm |
Male Thread BSPT Plug
| Part Number | Thread | Length |
|---|---|---|
| 057PNMT14SXN | 1/4" | 49mm |
| 057PNMT38SXN | 3/8" | 49mm |
| 057PNMT12SXN | 1/2" | 54mm |
Female Thread BSPP Plug
| Part Number | Thread | Length |
|---|---|---|
| 057PNFP14SXN | 1/4" | 47mm |
| 057PNFP18SXN | 1/8" | 45mm |
| 057PNFP38SXN | 3/8" | 47mm |
| 057PNFP12SXN | 1/2" | 48mm |
Hosetail Plug
| Part Number | Hosetail | Length |
|---|---|---|
| 057PNHT06SXN | 6mm | 58mm |
| 057PNHT08SXN | 8mm | 58mm |
| 057PNHT10SXN | 10mm | 58mm |
| 057PNHT13SXN | 13mm | 58mm |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58) Nickel Plated
Valve Body: Steel Nickel Plated
Sleeve: Steel Nickel Plated
Spring: Stainless Steel 301
Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
Plug Specifications
Plug Body: Steel Nickel Plated
Working Limits
Working Temperature
-20°C to +100°C (NBR); -40°C to +130°C (EPDM); -15°C to +200°C (Viton) - Depending on Medium
Working Pressure
35 Bar
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
- PCL Standard
- Parker-Rectus 19
- Maxsafe C19
