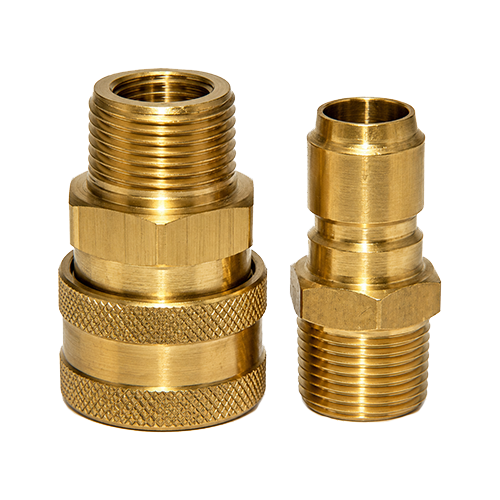

Two brass threaded pipe fittings (adapters) shown side by side, one large knurled end and one smaller end for plumbing connections.
Nominal Diameter 15mm

890 Series | Straight Through Quick Release Couplings & Plugs

The 890 Series is a 15mm straight through quick release coupling with simple connection and disconnection. No valve for full flow. High pressure rated to 115 Bar. Available with 3/4" BSPP female thread coupling and plug.

Related Series

Single Shut Off CouplingsSingle Shut Off CouplingsVersion not available
Double Shut Off CouplingsDouble Shut Off CouplingsVersion not available
Straight Through CouplingsStraight Through CouplingsThis Series (890)
Safety CouplingsSafety CouplingsVersion not available

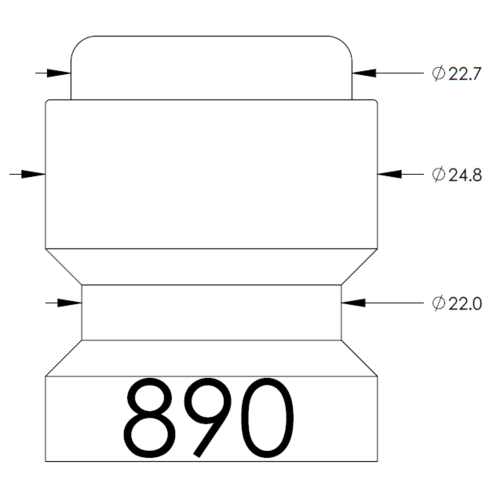

Technical illustration of a stepped cylindrical component with three diameters: Ø22.7, Ø24.8, Ø22.0; base labeled 890.

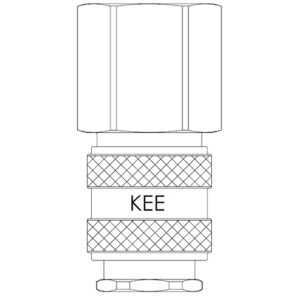

Female Thread BSPP Coupling

Part Number Thread Length Diameter
890CNFP34BNX 3/4" 56mm 36mm

Female Thread BSPP Plug

Part Number Thread Length Diameter
890PNFP34BNX 3/4" 51mm 27mm

Advantages

  • Simple connection and disconnection.
  • Suitable for water, grease, air and oil.

Technical Specifications

Coupling Specifications

Back Body: Brass (MS 58)

Valve Body: Brass (MS 58)

Sleeve: Brass (MS 58)

Spring: Stainless Steel 301

Locking Ring: Stainless Steel 301

Locking Balls: Stainless Steel 301

Seals: NBR

Plug Specifications

Plug Body: Brass (MS 58)

Working Limits

Working Temperature

-20°C to +100°C (NBR) | -40°C to +130°C (EPDM) | -15°C to +200°C (Viton)

Working Pressure

135 Bar (safety factor 4:1)

Maximum static working pressure with safety factor 4:1

Interchangeability

Interchangeable With:

No interchangeables listed.
