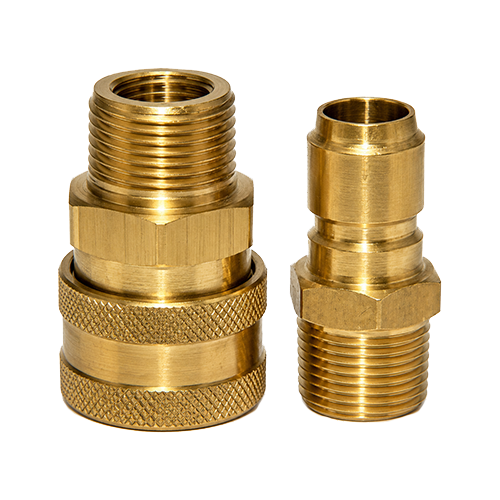

Two brass pipe fittings/adapters with threaded ends and knurled grip, showing large and small connectors on a black background, for plumbing use
Nominal Diameter 12mm

830 Series | Straight Through Quick Release Couplings & Plugs

The 830 Series is a 12mm straight through quick release coupling with simple connection and disconnection. No valve for full flow. High pressure rated to 150 Bar. Available with 1/2" BSPP female thread coupling and plug.

Related Series

Single Shut Off CouplingsSingle Shut Off CouplingsVersion not available
Double Shut Off CouplingsDouble Shut Off CouplingsVersion not available
Straight Through CouplingsStraight Through CouplingsThis Series (830)
Safety CouplingsSafety CouplingsVersion not available

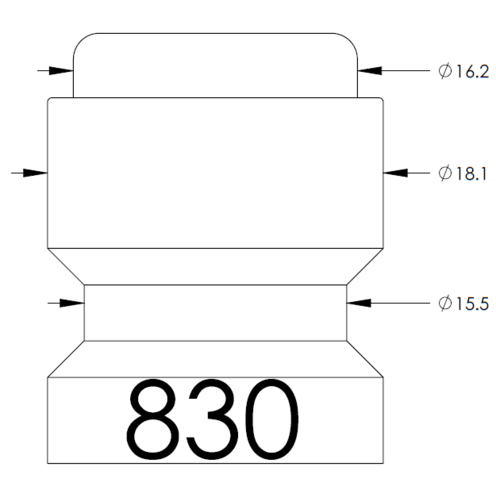

Technical drawing of a stepped cylindrical component with three diameters: Ø16.2 at the top, Ø18.1 in the middle, and Ø15.5 at the lower section, plus a large '830' label on the bottom block.

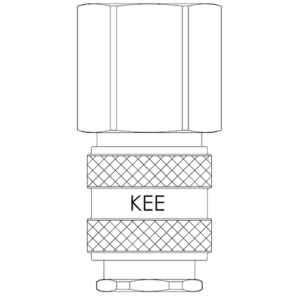

Female Thread BSPP Coupling

Part Number Thread Length Diameter
830CNFP12BNX 1/2" 51mm 27mm

Female Thread BSPP Plug

Part Number Thread Length Diameter
830PNFP12BNX 1/2" 48mm 22mm

Advantages

  • Simple connection and disconnection.
  • Suitable for water, grease, air and oil.

Technical Specifications

Coupling Specifications

Back Body: Brass (MS 58)

Valve Body: Brass (MS 58)

Sleeve: Brass (MS 58)

Spring: Stainless Steel 301

Locking Ring: Stainless Steel 301

Locking Balls: Stainless Steel 301

Seals: NBR

Plug Specifications

Plug Body: Brass (MS 58)

Working Limits

Working Temperature

-20°C to +100°C (NBR) | -40°C to +130°C (EPDM) | -15°C to +200°C (Viton)

Working Pressure

170 Bar (safety factor 4:1)

Maximum static working pressure with safety factor 4:1

Interchangeability

Interchangeable With:

No interchangeables listed.
