- Single hand disconnection.

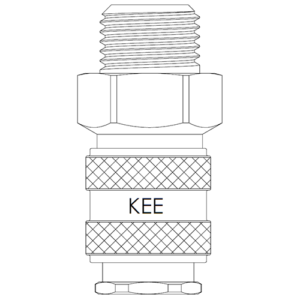

Male Thread BSPP Coupling
| Part Number | Length | Diameter | Thread |
|---|---|---|---|
| 811CNMP38BNC | 34mm | 28mm | 3/8" |
| 811CNMP12BNC | 35.5mm | 28mm | 1/2" |
| 811CNMP34BNC | 35.5mm | 28mm | 3/4" |
| 811CNMM22BNC | 35.5mm | 28mm | M22 x 1.5 |

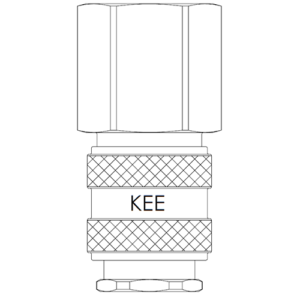

Female Thread BSPP Coupling
| Part Number | Length | Diameter | Thread |
|---|---|---|---|
| 811CNFP38BNC | 31mm | 28mm | 3/8" |
| 811CNFP12BNC | 31mm | 28mm | 1/2" |
| 811CNFP34BNC | 31mm | 28mm | 3/4" |
| 811CNFM22BNC | 31mm | 28mm | M22 x 1.5 |

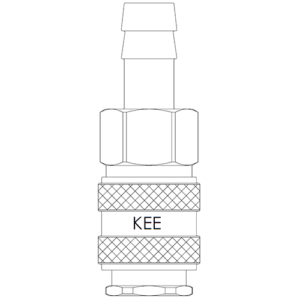

Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 811CNHT10BNC | 43mm | 28mm | 10mm |
| 811CNHT13BNC | 43mm | 28mm | 13mm |
| 811CNHT16BNC | 43mm | 28mm | 16mm |
| 811CNHT19BNC | 43mm | 28mm | 19mm |
Male Thread BSPT Plug
| Part Number | Length | Thread |
|---|---|---|
| 811PNMP38BNC | 35mm | 3/8" |
| 811PNMP12BNC | 35mm | 1/2" |
| 811PNMP34BNC | 35mm | 3/4" |
| 811PNMM22BNC | 35mm | M22 x 1.5 |
Female Thread BSPP Plug
| Part Number | Length | Thread |
|---|---|---|
| 811PNFP38BNC | 33mm | 3/8" |
| 811PNFP12BNC | 33mm | 1/2" |
| 811PNFP34BNC | 33mm | 3/4" |
| 811PNFM22BNC | 33mm | M22 x 1.5 |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58) Plated
Valve Body: Brass (MS 58) Plated
Sleeve: Brass (MS 58) Plated
Spring: Stainless Steel 301
Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
Seals: NBR
Plug Specifications
Plug Body: Brass (MS 58) Plated
Working Limits
Working Temperature
-20°C to +100°C (NBR) | -40°C to +130°C (EPDM) | -15°C to +200°C (Viton)
Working Pressure
15 Bar (safety factor 4:1)
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
No interchangeables listed.
