- Single handed operation.
- Suitable for water, grease, air and oil.
792 Series | Straight Through Quick Release Couplings & Plugs

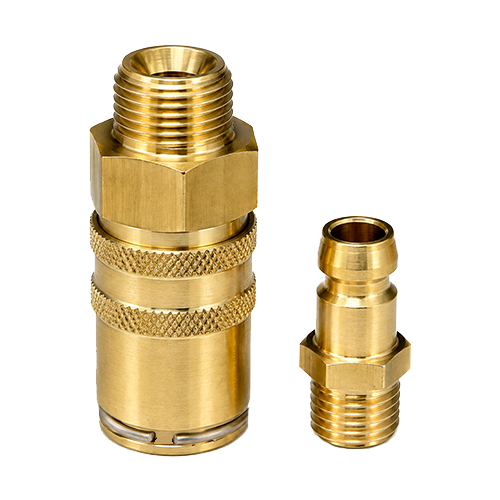

The 792 Series is a 9mm straight through quick release coupling for mould tool coolant lines. Similar to the 791 Series. No valve for full unrestricted flow. FKM (PTFE-coated) seals rated to 200°C. Available with BSPP and metric threads and hose tails in straight, 45° and 90° configurations.

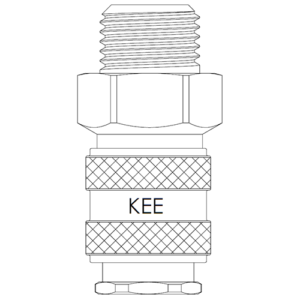

Male Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 792CNMP14BVX | 1/4" | 52mm | 22mm |
| 792CNMP38BVX | 3/8" | 52mm | 22mm |
| 792CNMP12BVX | 1/2" | 53mm | 22mm |
| 792CNMM61BVX | M16 x 1.5 | 52mm | 22mm |

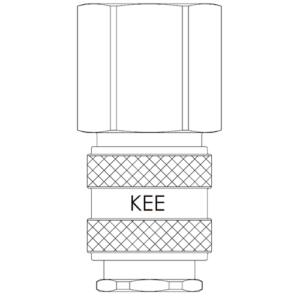

Female Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 792CNFP14BVX | 1/4" | 45mm | 22mm |
| 792CNFP38BVX | 3/8" | 46mm | 22mm |
| 792CNFP12BVX | 1/2" | 49mm | 22mm |

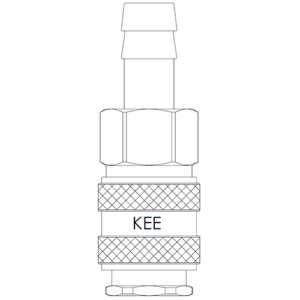

Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 792CNHT09BVX | 62mm | 22mm | 9mm |
| 792CNHT13BVX | 62mm | 22mm | 13mm |

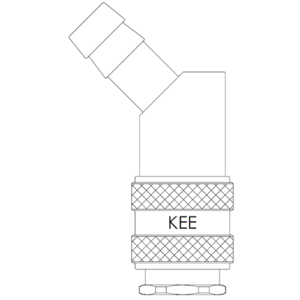

45 deg Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 792CNHF09BVX | 51mm | 22mm | 9mm |
| 792CNHF13BVX | 51mm | 22mm | 13mm |
90 deg Hosetail Coupling
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 792CNHN09BVX | 51mm | 22mm | 9mm |
| 792CNHN13BVX | 51mm | 22mm | 13mm |

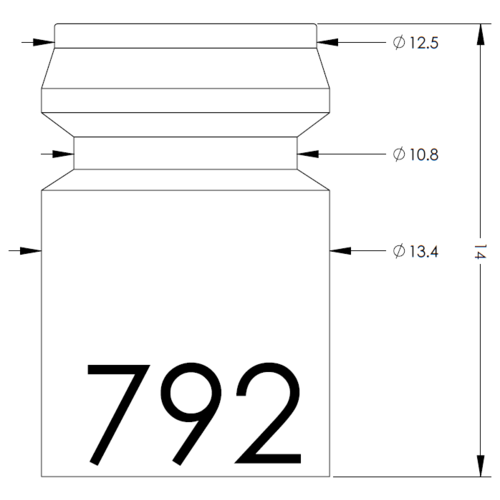

Male Thread BSPP Plug
| Part Number | Thread | Length |
|---|---|---|
| 792PNMP18BXN | 1/8" | 24mm |
| 792PNMP14BXN | 1/4" | 26mm |
| 792PNMP38BXN | 3/8" | 26mm |
| 792PNMP12BXN | 1/2" | 31mm |
| 792PNMP34BXN | 3/4" | 35mm |
| 792PNMM01BXX | M10 x 1 | 24mm |
| 792PNMM41BXX | M14 x 1.5 | 26mm |
| 792PNMM61BXX | M16 x 1.5 | 26mm |
Female Thread BSPP Plug
| Part Number | Thread | Length |
|---|---|---|
| 792PNFP38BXN | 3/8" | 33mm |
| 792PNFP12BXN | 1/2" | 35mm |
Hosetail Plug
| Part Number | Length | Hosetail |
|---|---|---|
| 792PNHT09BXX | 40mm | 9mm |
| 792PNHT13BXX | 40mm | 13mm |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58)
Valve Body: Brass (MS 58)
Sleeve: Brass (MS 58)
Spring: Stainless Steel 301
Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
coated) — Seals: FKM (PTFE
Plug Specifications
Plug Body: Brass (MS 58)
Working Limits
Working Temperature
-25°C to +200°C (Viton)
Working Pressure
15 Bar (safety factor 4:1)
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
No interchangeables listed.
