- Knurled locking rings for easier grip.

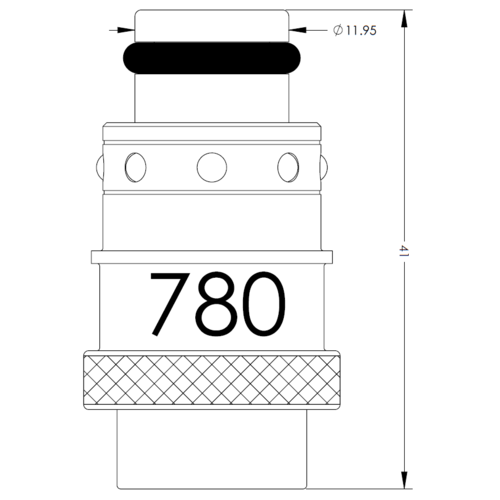

780 Series | Straight Through Quick Release Couplings & Plugs
The 780 Series is an 8mm straight through quick release coupling for temperature control circuits on mould cooling lines in injection presses. No valve for full unrestricted flow. Knurled locking rings for easier one-hand disconnection. BSPP male and female thread couplings with hose tail plugs in straight, 45° and 90° configurations from 6mm to 13mm bore.
Male Thread BSPP Coupling
| Part Number | Length | Diameter |
|---|---|---|
| 780CNMT18BXN | 31mm | 21mm |
| 780CNMT14BXN | 33mm | 21mm |
| 780CNMT38BXN | 34mm | 21mm |
Female Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 780CNFP18BXN | 1/8" | 39mm | 21mm |
| 780CNFP14BXN | 1/4" | 39mm | 21mm |
Female Thread BSPP Plug
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 780PNFP14BNN | 1/4" | 43mm | 20mm |
Hosetail Plug
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 780PNHT06BNN | 38mm | 20mm | 6mm |
| 780PNHT08BNN | 38mm | 20mm | 8mm |
| 780PNHT10BNN | 38mm | 20mm | 10mm |
| 780PNHT12BNN | 38mm | 20mm | 12mm |
| 780PNHT13BNN | 38mm | 20mm | 13mm |
45 deg Hosetail Plug
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 780PNHF06BNN | 47mm | 20mm | 6mm |
| 780PNHF08BNN | 47mm | 20mm | 8mm |
| 780PNHF10BNN | 47mm | 20mm | 10mm |
| 780PNHF12BNN | 47mm | 20mm | 12mm |
| 780PNHF13BNN | 47mm | 20mm | 13mm |
90 deg Hosetail Plug
| Part Number | Length | Diameter | Hosetail |
|---|---|---|---|
| 780PNHN06BNN | 45mm | 20mm | 6mm |
| 780PNHN08BNN | 45mm | 20mm | 8mm |
| 780PNHN10BNN | 45mm | 20mm | 10mm |
| 780PNHN12BNN | 45mm | 20mm | 12mm |
| 780PNHN13BNN | 45mm | 20mm | 13mm |
Advantages
Technical Specifications
Coupling Specifications
Valve Body: Brass (MS 58) Nickel Plated
Plug Specifications
Plug Body: Brass (MS 58) Nickel Plated
Sleeve: Brass (MS 58) Nickel Plated
Locking Balls: Stainless Steel 301
Seals: NBR
Working Limits
Working Temperature
-20°C to +100°C (NBR) | -40°C to +130°C (EPDM) | -15°C to +200°C (Viton)
Working Pressure
10 Bar (safety factor 4:1)
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
No interchangeables listed.
