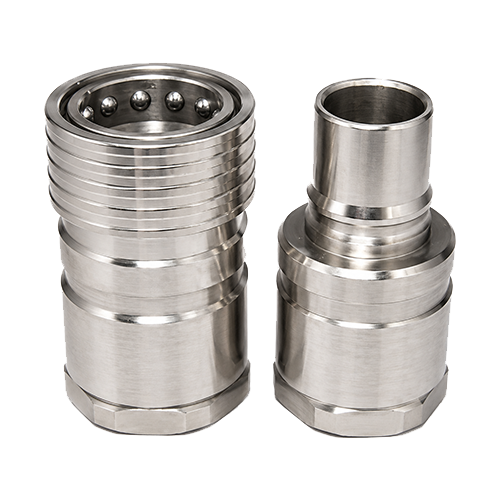

Two-piece stainless steel industrial hose connector/coupling (male and female halves) with a ball-detent locking end on the left piece.
Nominal Diameter 38mm

615 Series | Double Shut Off ISO 7241-1B Quick Release Couplings & Plugs

The 615 series is a small double shut off coupling conforming to ISO 7241-1 SERIES B, offering above average flow for liquid gaseous media

Related Series

Single Shut Off CouplingsSingle Shut Off CouplingsVersion not available
Double Shut Off CouplingsDouble Shut Off CouplingsThis Series (615)
Straight Through CouplingsStraight Through CouplingsVersion not available
Safety CouplingsSafety CouplingsVersion not available
Engineering drawing of a stepped cylindrical part with three shoulders. Overall height 58 units. Diameters: bottom 47.9, middle 42.9, upper 44.4. A bold '615' is inscribed on the base.

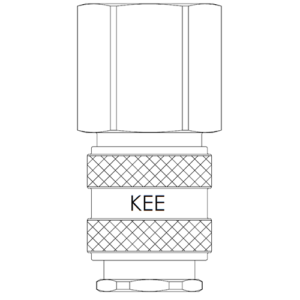

Female Thread BSPP Coupling

Part Number Termination Length Diameter
615CDFP05BNN 1 1/2" 126mm 75mm

Female Thread BSPP Plug

Part Number Termination Length
615PDFP05BNN 1 1/2" 126mm

Advantages

  • Double handed operation.
  • ISO-B Series

Technical Specifications

Coupling Specifications
Materials
Performance

Working Limits

Working Temperature

-20°C to +100°C (NBR) | -40°C to +130°C (EPDM) | -15°C to +200°C (Viton)

Working Pressure

105 Bar (safety factor 4:1)

Maximum static working pressure with safety factor 4:1

Interchangeability

Interchangeable With:

No interchangeables listed.
