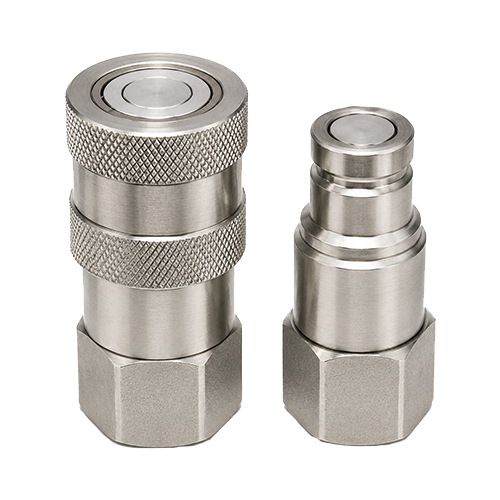

Two silver pneumatic quick-connect fittings (male and female) with knurled grips and hex bases on white background.
Nominal Diameter 25mm

549 Series | Safety Lock Double Shut Off ISO 16028 Flat Face Quick Release Couplings & Plugs

The 549 series conforms to ISO 16028 Flat face, dry break facilitating easy cleaning. With safety locking sleeve prevents unintentional disconnection.

Related Series

Single Shut Off CouplingsSingle Shut Off CouplingsVersion not available
Double Shut Off CouplingsDouble Shut Off CouplingsThis Series (549)
Straight Through CouplingsStraight Through CouplingsVersion not available
Safety CouplingsSafety CouplingsThis Series (549)

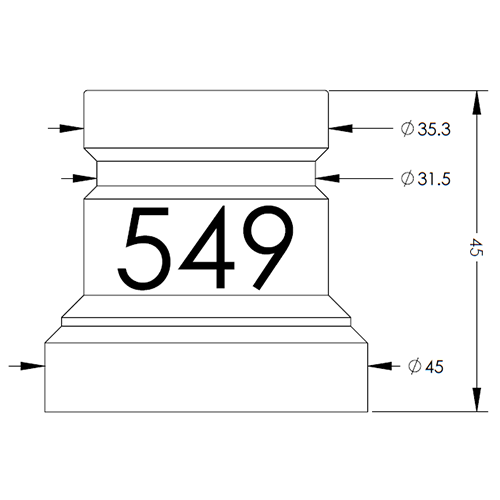

Front view of a stepped cylindrical part with three diameters: Ø45 at the base, Ø31.5 mid, and Ø35.5 near the top; overall height shown with measurement, and the central face displays the number 549.

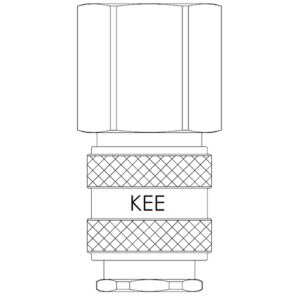

Female Thread BSPP Coupling

Part Number Termination Length Diameter
549CDFP01SNP 1" x 1" 105mm 60mm
549CDFP0104SNP 1" x 1 1/4" 109mm 60mm

Female Thread BSPP Plug

Part Number Termination Length Diameter
549PDFP01SNP 1" x 1" 89mm 60mm
549PDFP0104SNP 1" x 1 1/4" 93mm 60mm

Coupling Cap

Part Number
549CC01

Plug Cap

Part Number
549PC01

Advantages

  • Single handed operation.
  • ISO 16028 Flat face

Technical Specifications

Coupling Specifications
Materials
Performance

Working Limits

Working Temperature

-30°C to +100°C (NBR)

Working Pressure

200 Bar (safety factor 4:1)

Maximum static working pressure with safety factor 4:1

Interchangeability

Interchangeable With:

No interchangeables listed.

Download Product Information
