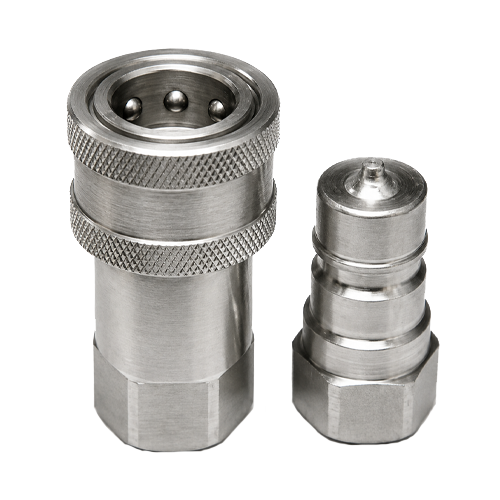

Two metal circular connectors with screw-lock coupling, one larger and one smaller, on a white background
Nominal Diameter 6mm

360 Series | Double Shut Off Quick Release Couplings & Plugs

360 Series conforms to ISO 7241-1 A SERIES, steel double shut-off design, for hydraulic applications.

Related Series

Single Shut Off CouplingsSingle Shut Off CouplingsVersion not available
Double Shut Off CouplingsDouble Shut Off CouplingsThis Series (360)
Straight Through CouplingsStraight Through CouplingsVersion not available
Safety CouplingsSafety CouplingsVersion not available
CAD-style drawing of a bottle-like container with a threaded neck and stepped base, showing overall height 17.6 and diameters 11.7, 10.5, and 12.9; base labeled 360.

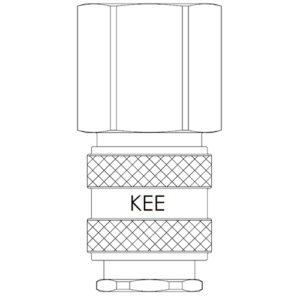

Female Thread BSPP Coupling

Part Number Length Diameter Thread
360CDFP14SNP 49mm 27mm 1/4"

Female Thread BSPP Plug

Part Number Length Diameter Thread
360PDFP14SNP 34mm 12mm 1/4"

Coupling Cap

Part Number
360CC14

Plug Cap

Part Number
360PC14

Advantages

  • Twin handed operation
  • ISO-A

Technical Specifications

Coupling Specifications

Back Body: Steel

Valve Body: Steel

Sleeve: Steel

Spring: Stainless Steel 301

Locking Balls: Stainless Steel 420

Plug Specifications

Plug: Steel

Valve: Steel

Spring: Steel

Seal: NBR

Working Limits

Working Temperature

-30°C to +100°C (NBR) — Depending on Medium

-40°C to +130°C (EPDM)

-15°C to +200°C (Viton)

Depending on Medium

Working Pressure

350 Bar

Maximum static working pressure with safety factor 4:1

Interchangeability

Interchangeable With:

No interchangeables listed.
