- Single handed operation.
- Small dimensions.

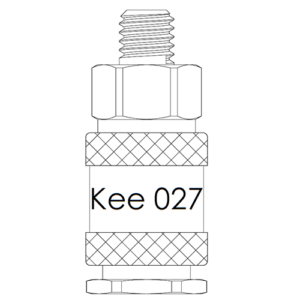

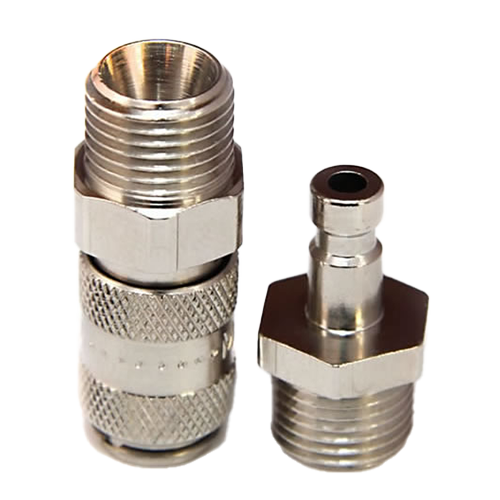

Male Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 027CVMM50BNN | M5 | 26mm | 10mm |
| 027CVMP18BNN | 1/8" | 28mm | 10mm |

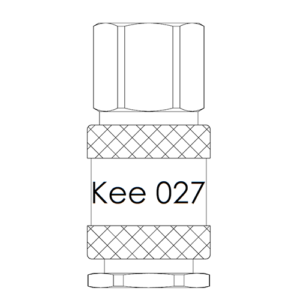

Female Thread BSPP Coupling
| Part Number | Thread | Length | Diameter |
|---|---|---|---|
| 027CVFM50BNN | M5 | 26mm | 10mm |
| 027CVFP18BNN | 1/8" | 28mm | 10mm |

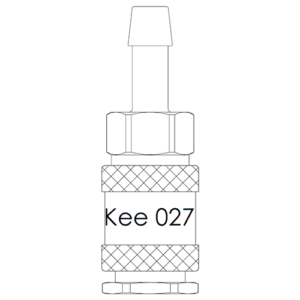

Hose Tail Coupling
| Part Number | Hosetail | Length | Diameter |
|---|---|---|---|
| 027CVHT03BNN | 3mm | 28mm | 10mm |
| 027CVHT04BNN | 4mm | 35mm | 10mm |
| 027CVHT05BNN | 5mm | 35mm | 10mm |

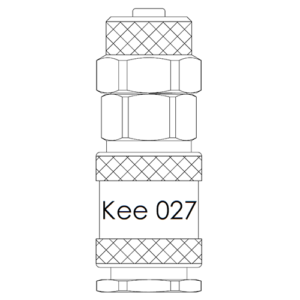

Tube Connection Coupling
| Part Number | Tube Size | Length | Diameter |
|---|---|---|---|
| 027CVTC04BNN | 3 x 4mm | 33mm | 10mm |
| 027CVTC05BNN | 3 x 5mm | 33mm | 10mm |
| 027CVTC06BNN | 4 x 6mm | 33mm | 10mm |

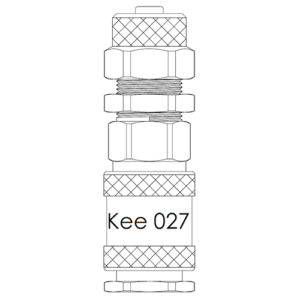

Bulkhead To Tube Coupling
| Part Number | Tube Size | Length | Diameter |
|---|---|---|---|
| 027CVBT04BNN | 3 x 4mm | 33mm | 10mm |
| 027CVBT05BNN | 3 x 5mm | 45mm | 10mm |
| 027CVBT06BNN | 4 x 6mm | 45mm | 10mm |
Bulkhead To Hose Tail Coupling
| Part Number | Hosetail | Length | Diameter |
|---|---|---|---|
| 027CVBH03BNN | 3mm | 51mm | 10mm |
| 027CVBH04BNN | 4mm | 51mm | 10mm |
| 027CVBH05BNN | 5mm | 51mm | 10mm |

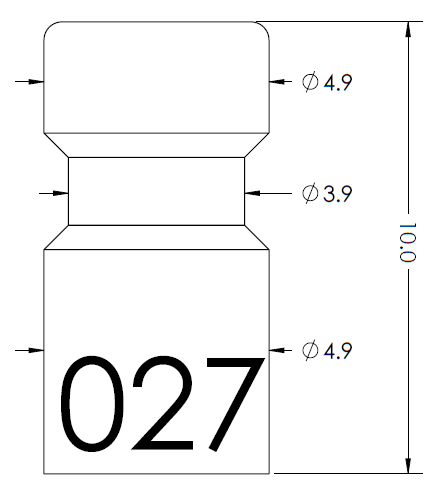

Male Thread BSPP Plug
| Part Number | Thread | Length |
|---|---|---|
| 027PNMM50BXN | M5 | 18mm |
| 027PNMP18BXN | 1/8" | 20mm |
Female Thread BSPP Plug
| Part Number | Thread | Length |
|---|---|---|
| 027PNFM50BXN | M5 | 17mm |
| 027PNFP18BXN | 1/8" | 19mm |
Hose Tail Plug
| Part Number | Hosetail | Length |
|---|---|---|
| 027PNHT03BXN | 3mm | 24mm |
| 027PNHT04BXN | 4mm | 24mm |
| 027PNHT05BXN | 5mm | 24mm |
Tube Connection Plug
| Part Number | Tube Size | Length |
|---|---|---|
| 027PNTC04BXN | 3 x 4mm | 25mm |
| 027PNTC05BXN | 3 x 5mm | 25mm |
| 027PNTC06BXN | 4 x 6mm | 25mm |
Bulkhead To Tube Plug
| Part Number | Tube Size | Length |
|---|---|---|
| 027PNBT04BXN | 3 x 4mm | 38mm |
| 027PNBT05BXN | 3 x 5mm | 38mm |
| 027PNBT06BXN | 4 x 6mm | 38mm |
Bulkhead To Hose Tail Plug
| Part Number | Hosetail | Length |
|---|---|---|
| 027PNBH03BXN | 3mm | 45mm |
| 027PNBH04BXN | 4mm | 45mm |
| 027PNBH05BXN | 5mm | 45mm |
Advantages
Technical Specifications
Coupling Specifications
Back Body: Brass (MS 58) Nickel Plated
Valve Body: Brass (MS 58) Nickel Plated
Sleeve: Brass (MS 58) Nickel Plated
Spring: Stainless Steel 301
Locking Ring: Stainless Steel 301
Locking Balls: Stainless Steel 301
Seals: NBR
Plug Specifications
Plug Body: Brass (MS 58) Nickel Plated
Working Limits
Working Temperature
-20°C to +100°C (NBR)
-40°C to +130°C (EPDM)
-15°C to +200°C (Viton)
Depending on Medium
Working Pressure
35 Bar
Maximum static working pressure with safety factor 4:1
Interchangeability
Interchangeable With:
- Walther 06 0003
- Parker-Rectus 20
- Maxsafe C20
- Tema 7500
