- Lightweight and corrosion-resistant thermoplastic construction
- Simple push-on hose connection (non push-fit design)
- Good chemical resistance for fluid applications
- Wide range of sizes and configurations available
- Cost-effective solution for hose connections

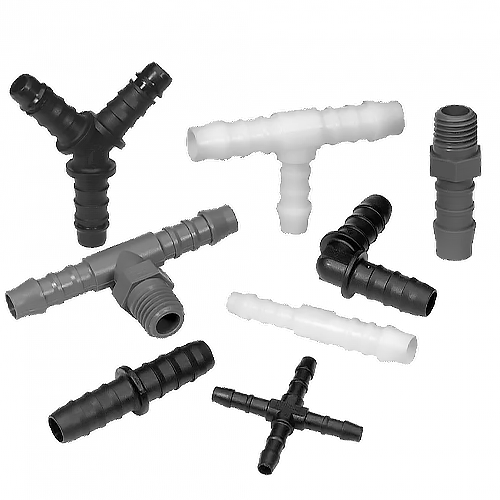

Thermoplastic Fittings
Our thermoplastic fittings range is specifically designed for applications requiring robust and economical hose connections without the use of push-fit mechanisms. These hose-tail (barbed) fittings ensure a tight, secure grip when used with flexible tubing, making them ideal for low to medium pressure systems.
Manufactured from high-quality thermoplastics, they provide excellent resistance to corrosion, chemicals and environmental factors, making them suitable for use with air, water and a wide range of fluids. The range includes straight connectors, elbows, tees, reducers and threaded adaptors, offering flexibility across a variety of installation requirements. Lightweight and easy to install, these fittings are widely used in automotive, industrial and fluid transfer applications where reliability and simplicity are key.

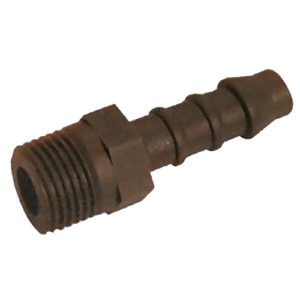

Plastic Hose Connector - Straight BSPT Male x Hosetail
| Part Number | Thread | Hosetail (mm) |
|---|---|---|
| MT18HT04N6X | 1/8" | 4mm |
| MT14HT04N6X | 1/4" | 4mm |
| MT14HT05N6X | 1/4" | 5mm |
| MT18HT06N6X | 1/8" | 6mm |
| MT14HT06N6X | 1/4" | 6mm |
| MT38HT06N6X | 3/8" | 6mm |
| MT14HT08N6X | 1/4" | 8mm |
| MT38HT08N6X | 3/8" | 8mm |
| MT12HT06N6X | 1/2" | 6mm |
| MT14HT10N6X | 1/4" | 10mm |
| MT38HT10N6X | 3/8" | 10mm |
| MT38HT12N6X | 3/8" | 12mm |
| MT12HT12N6X | 1/2" | 12mm |
| MT12HT14N6X | 1/2" | 14mm |
| MT12HT16N6X | 1/2" | 16mm |
| MT34HT16N6X | 3/4" | 16mm |
| MT34HT19N6X | 3/4" | 19mm |
| MT01HT25N6X | 1"" | 25mm |
T Taper Thread - BSPT Male
| Part Number | Thread | Hosetail (mm) |
|---|---|---|
| HT06MT18HT06N6X | 1/8" | 6mm |
| HT08MT14HT08N6X | 1/4" | 8mm |
| HT10MT38HT10N6X | 3/8" | 10mm |

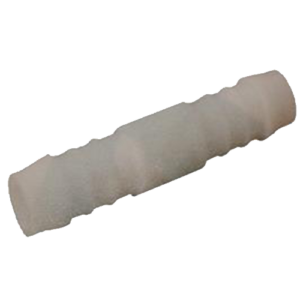

Straight Push-On Hose Joiner
| Part Number | Hosetail (mm) |
|---|---|
| HT03HT03PXX | 3mm |
| HT04HT04PXX | 4mm |
| HT05HT05PXX | 5mm |
| HT06HT06PXX | 6mm |
| HT08HT08PXX | 8mm |
| HT10HT10PXX | 10mm |
| HT12HT12PXX | 12mm |
| HT13HT13PXX | 13mm |
| HT14HT14PXX | 14mm |
| HT16HT16PXX | 16mm |
| HT03HT19PXX | 19mm |
| HT03HT25PXX | 25mm |

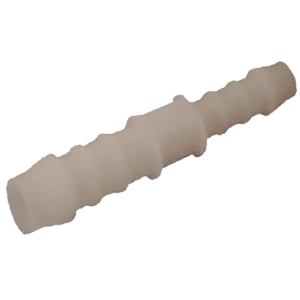

Reducing Straight Hose x Hose
| Part Number | Thread | Hosetail (mm) |
|---|---|---|
| HT04HT03PXX | 4mm | 3mm |
| HT05HT04PXX | 5mm | 4mm |
| HT06HT04PXX | 6mm | 4mm |
| HT08HT04PXX | 8mm | 4mm |
| HT08HT06PXX | 8mm | 6mm |
| HT10HT06PXX | 10mm | 6mm |
| HT10HT08PXX | 10mm | 8mm |
| HT12HT08PXX | 12mm | 8mm |
| HT12HT10PXX | 12mm | 10mm |

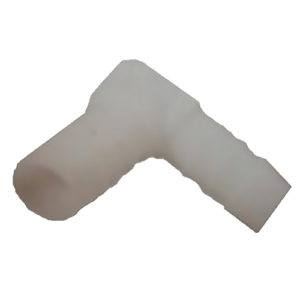

Elbow Hose Tail
| Part Number | Hosetail (mm) |
|---|---|
| HN03PXX | 3mm |
| HN04PXX | 4mm |
| HN05PXX | 5mm |
| HN06PXX | 6mm |
| HN08PXX | 8mm |
| HN10PXX | 10mm |
| HN12PXX | 12mm |
| HN13PXX | 13mm |
| HN14PXX | 14mm |
| HN15PXX | 15mm |
| HN16PXX | 16mm |
| HN19PXX | 19mm |
| HN25PXX | 25mm |
Equal Tee Hose
| Part Number | Hosetail (mm) |
|---|---|
| 3HT03PXX | 3mm |
| 3HT04PXX | 4mm |
| 3HT05PXX | 5mm |
| 3HT06PXX | 6mm |
| 3HT07PXX | 7mm |
| 3HT08PXX | 8mm |
| 3HT10PXX | 10mm |
| 3HT12PXX | 12mm |
| 3HT13PXX | 13mm |
| 3HT14PXX | 14mm |
| 3HT15PXX | 15mm |
| 3HT16PXX | 16mm |
| 3HT19PXX | 19mm |
| 3HT25PXX | 25mm |

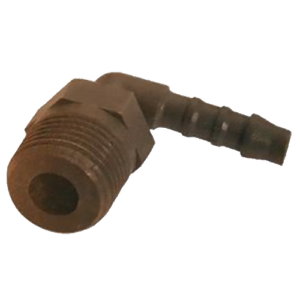

Elbow Taper Thread" Male x Hose Tail
| Part Number | Thread | Hosetail (mm) |
|---|---|---|
| MT18HN04N6X | 1/8" | 4mm |
| MT14HN04N6X | 1/4" | 4mm |
| MT18HN06N6X | 1/8" | 6mm |
| MT14HN06N6X | 1/4" | 6mm |
| MT38HN06N6X | 3/8" | 6mm |
| MT18HN08N6X | 1/8" | 8mm |
| MT14HN08N6X | 1/4" | 8mm |
| MT12HN08N6X | 1/2" | 8mm |
| MT14HN10N6X | 1/4" | 10mm |
| MT38HN10N6X | 3/8" | 10mm |
| MT38HN12N6X | 3/8" | 12mm |
| MT12HN12N6X | 1/2" | 12mm |
| MT34HN19N6X | 3/4" | 19mm |
| MT01HN25N6X | 1"" | 25mm |

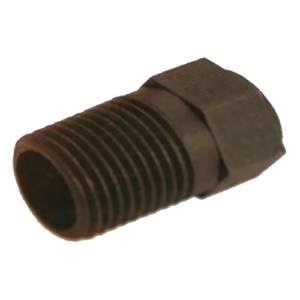

Blanking Plug Screw-in - BSPT Male
| Part Number | Thread |
|---|---|
| MT38HN6X | 3/8" |
Advantages
Technical Specifications
Technical Specification
Material: Thermoplastic (e.g. nylon/polyamide)
Manufacturing standards: ISO 9002, QS9000, ISO 14001
Connection types: Hose tail (barbed), BSPT male thread
Configurations: Straight, elbow, tee, reducer, hose joiner
Designed for use with flexible tubing and hose clamps Non push-fit / non one-touch fitting design
Working Limits
Working Temperature
0°C to +60°C
Depending on Medium
Working Pressure
10 Bar
Maximum static working pressure with safety factor 4:1
