- Robust construction
- Flexible in use
- Polyester braid reinforcement
- Suitable for compressed air applications

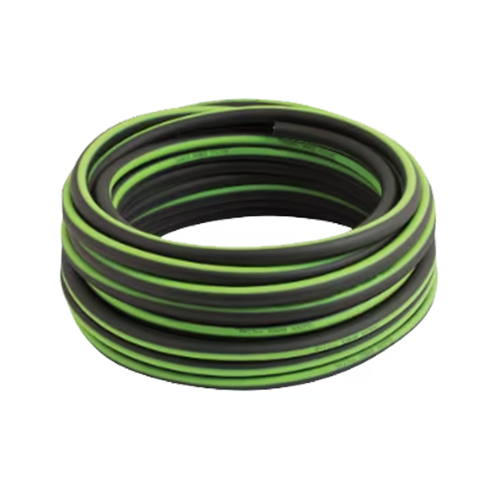

Rubber Alloy Hose
Rubber Alloy Hose is a robust flexible hose for compressed air and general industrial air transfer applications. The range combines a Rubber & PVC hose construction with polyester braid reinforcement and is supplied in 30m rolls for workshop, maintenance and site use.

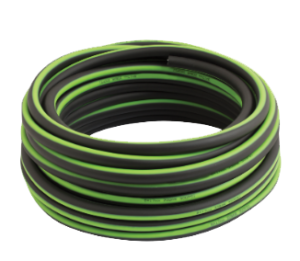

30m Roll - 1/4" Rubber Alloy Hose
| Part Number | ID | OD |
|---|---|---|
| RAH14-30 | 6.3mm | 14mm |
30m Roll - 5/16" Rubber Alloy Hose
| Part Number | ID | OD |
|---|---|---|
| RAH516-30 | 8mm | 17mm |
30m Roll - 3/8" Rubber Alloy Hose
| Part Number | ID | OD |
|---|---|---|
| RAH38-12 | 10mm | 19mm |
30m Roll - 1/2" Rubber Alloy Hose
| Part Number | ID | OD |
|---|---|---|
| RAH12-30 | 12.5mm | 22.5mm |
Advantages
Technical Specifications
Hose Technical Specification
Rubber & PVC hose construction with polyester braid reinforcement.
Working Pressure: 20 bar
Burst Pressure: 80 bar
Working Temperature: -10°C to +65°C
Roll Size: 30m
Safety Factor: 3:1
Embossing: No
Shelf Life: 3 years (no direct sunlight)
Working Limits
Working Temperature
Working Temperature: -10°C to +65°C
Working Pressure
Working Pressure: 20 bar
Burst Pressure: 80 bar
Safety Factor: 3:1
Maximum static working pressure with safety factor 4:1
