- Ready-to-Use Assemblies - Hose and specified end connections supplied as a complete assembly.
- Multiple Connection Options - Available with BSP terminations and Kee 076 Series breathing air coupling and plug configurations.
- Standard Length Options - Multiple hose lengths available to suit different installation and operating requirements.
- Simplified Specification - Complete assembly part numbers reduce the need to specify individual hose and connection components.
- Breathing Air Applications - Configured specifically for use within compressed breathing air hose-line systems.
Breathing Air Hose Assemblies
Breathing Air Hose Assemblies provide ready-to-use hose lines for the connection and extension of compressed breathing air systems. Assemblies are supplied in standard lengths with factory-fitted connection options, removing the need for users to separately select and assemble hose and end connections.
The range includes assemblies with BSP terminations and configurations incorporating Kee 076 Series breathing air couplings and plugs. This allows complete hose assemblies to be selected for connection between breathing air supply equipment, distribution points and compatible breathing air equipment.
A range of standard hose lengths and termination configurations is available to suit different breathing air installations. For applications requiring a configuration not listed, contact Kee Connections to discuss assembly requirements.

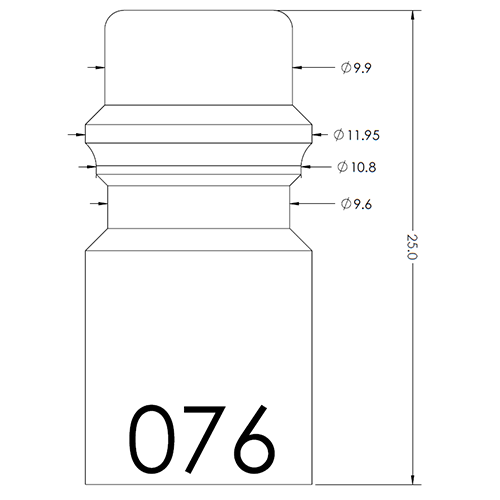

076 Series Coupling and Plug Hose Assemblies
| Part Number | Type | Length |
|---|---|---|
| 076C-TBA-1M-076P | BA Assembly | 1m |
| 076C-TBA-5M-076P | BA Assembly | 5m |
| 076C-TBA-10M-076P | BA Assembly | 10m |
| 076C-TBA-15M-076P | BA Assembly | 15m |
| 076C-TBA-20M-076P | BA Assembly | 20m |
| 076C-TBA-25M-076P | BA Assembly | 25m |
| 076C-TBA-30M-076P | BA Assembly | 30m |
| 076C-TBA-60M-076P | BA Assembly | 60m |
1/4" BSP Hose Assemblies with O-Ring
| Part Number | Type | Thread | Length | Seal Material |
|---|---|---|---|---|
| MP14-TBA10-1M-MP14 | BA Assembly | 1/4 BSP | 1m | O-Ring |
| MP14-TBA10-5M-MP14 | BA Assembly | 1/4 BSP | 5m | O-Ring |
| MP14-TBA10-10M-MP14 | BA Assembly | 1/4 BSP | 10m | O-Ring |
| MP14-TBA10-15M-MP14 | BA Assembly | 1/4 BSP | 15m | O-Ring |
| MP14-TBA10-20M-MP14 | BA Assembly | 1/4 BSP | 20m | O-Ring |
| MP14-TBA10-25M-MP14 | BA Assembly | 1/4 BSP | 25m | O-Ring |
| MP14-TBA10-30M-MP14 | BA Assembly | 1/4 BSP | 30m | O-Ring |

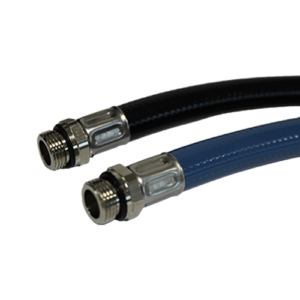

3/8" BSP Hose Assemblies with O-Ring
| Part Number | Type | Thread | Length | Seal Material |
|---|---|---|---|---|
| MP38-TBA10-1M-MP38 | BA Assembly | 3/8 BSP | 1m | O-Ring |
| MP38-TBA10-5M-MP38 | BA Assembly | 3/8 BSP | 5m | O-Ring |
| MP38-TBA10-10M-MP38 | BA Assembly | 3/8 BSP | 10m | O-Ring |
| MP38-TBA10-15M-MP38 | BA Assembly | 3/8 BSP | 15m | O-Ring |
| MP38-TBA10-20M-MP38 | BA Assembly | 3/8 BSP | 20m | O-Ring |
| MP38-TBA10-25M-MP38 | BA Assembly | 3/8 BSP | 25m | O-Ring |
| MP38-TBA10-30M-MP38 | BA Assembly | 3/8 BSP | 30m | O-Ring |
| MP38-TBA10-60M-MP38 | BA Assembly | 3/8 BSP | 60m | O-Ring |
Advantages
Technical Specifications
Hose Technical Specification
Breathing Air Hose is designed for demanding environments such as nuclear, petrochemical, and heavy manufacturing industries.
3-Layer Construction - Rubber, EPDM & Polyester reinforcement
- Reinforced Strength – Triple layers increased pressure tolerance and structural integrity.
- Temperature Range – Designed to perform reliably from -20°C to +70°C across varying environmental conditions.
- Versatile Use – Suitable for use in breathing air systems within nuclear power plants, petrochemical environments, and spray applications.
Working Limits
Working Temperature
-20°C to +100°C (NBR)
-40°C to +130°C (EPDM)
-15°C to +200°C (Viton)
Depending on Medium
Working Pressure
15 Bar (hose)
Maximum static working pressure with safety factor 4:1
