- Secure Clamping - Strong and reliable hose retention.
- Tamper Resistant - Permanent crimped installation.
- Even Compression - Uniform sealing around the hose.
Ear Clips
Ear Clips are designed to provide a strong, permanent and uniform clamping force on hoses and tubing. Commonly used in pneumatic, fluid transfer and industrial applications, they deliver a reliable seal while resisting vibration and loosening.
Single Ear Clip - Zinc Plated Steel
| Part Number | Size Range |
|---|---|
| OC1E008010SXZ | 8-10mm |
| OC1E009011SXZ | 9-11mm |
| OC1E010012SXZ | 10-12mm |
| OC1E011012SXZ | 11-12mm |
| OC1E012014SXZ | 12-14mm |
| OC1E014016SXZ | 14-16mm |
| OC1E016185SXZ | 16-18mm |

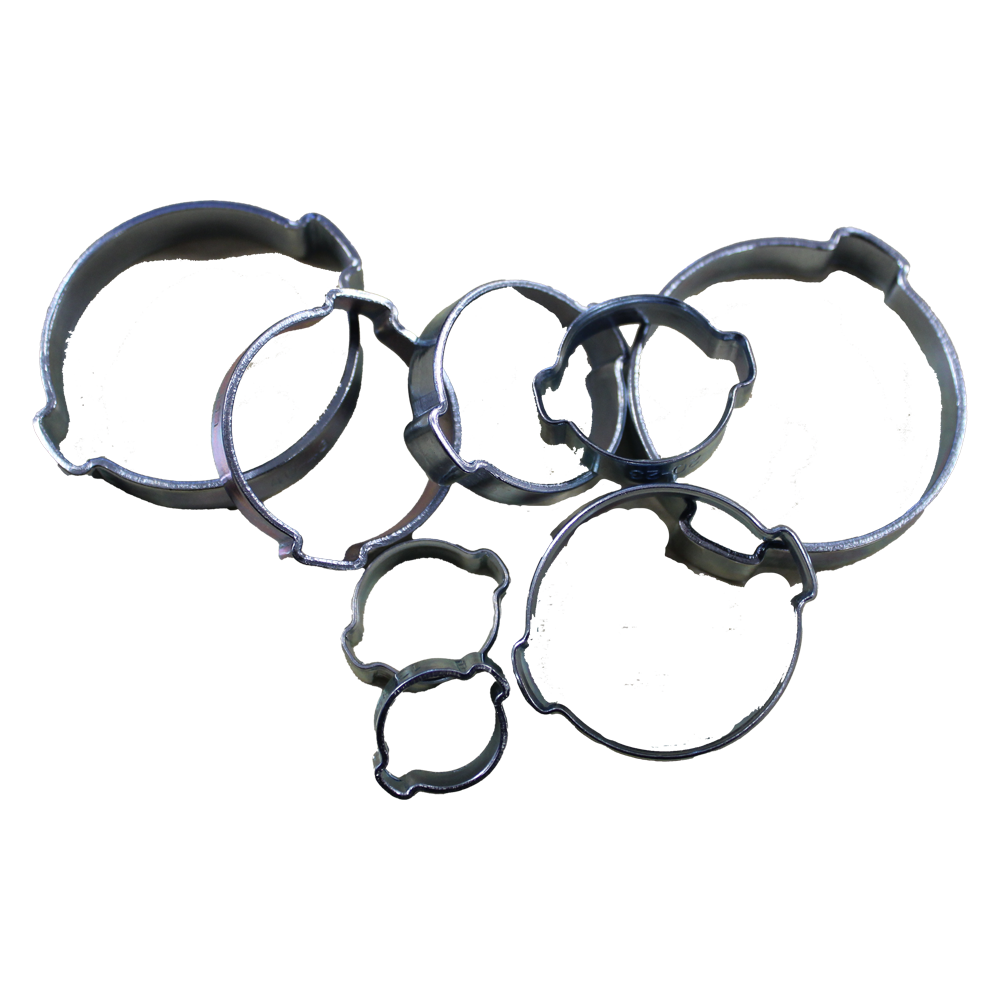

Double Ear Clip - Zinc Plated Steel
| Part Number | Size Range |
|---|---|
| EOC05-07 | 5-7mm |
| EOC07-09 | 7-9mm |
| EOC09-11 | 9-11mm |
| EOC11-13 | 11-13mm |
| EOC13-15 | 13-15mm |
| EOC15-18 | 15-18mm |
| EOC17-20 | 17-20mm |
| EOC20-23 | 20-23mm |
| EOC22-25 | 22-25mm |
| EOC23-27 | 23-27mm |
| EOC25-28 | 25-28mm |
| EOC28-31 | 28-31mm |
| EOC31-34 | 31-34mm |
| EOC34-37 | 34-37mm |
| EOC37-40 | 37-40mm |
| EOC40-43 | 40-43mm |
| EOC43-46 | 43-46mm |
Advantages
Technical Specifications
Ear Clips
Material: Zinc-Plated Steel for durability and corrosion resistance
If your application requires a size not listed above, we can supply custom-sized Double Ear Clips – please contact us with your requirements.
Working Limits
Working Temperature
-30°C to +140°C
